Build Log for Sonex 0849B

Aft Fuselage Side Panel Assembly – Part 1

—

Aligned upper longeron to LH aft side skin per plans and pilot drilled. Longeron set back 1/32″ from forward skin bend line and flush with top of skin. Lower longeron aligned along bottom edge of LH aft side skin using skin simulator to offset longeron for bottom skin. Also set back lower longeron 1/32″ from forward skin bend line. Both LH longerons pilot drilled in place.

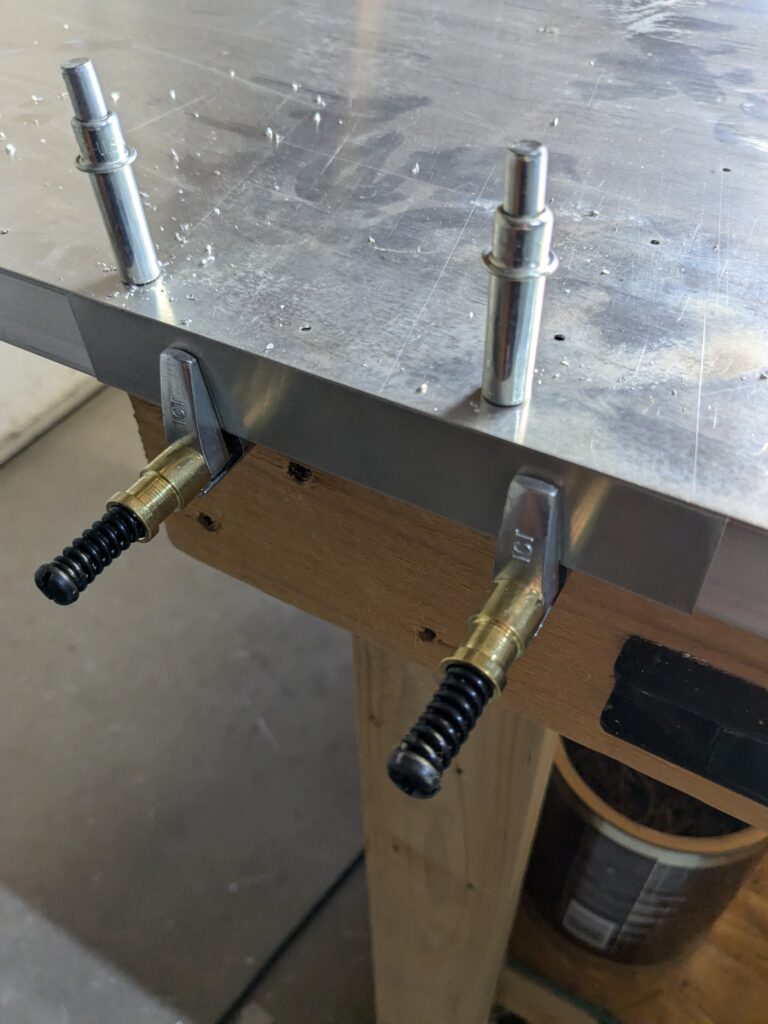

Skin simulator for lower longeron offset

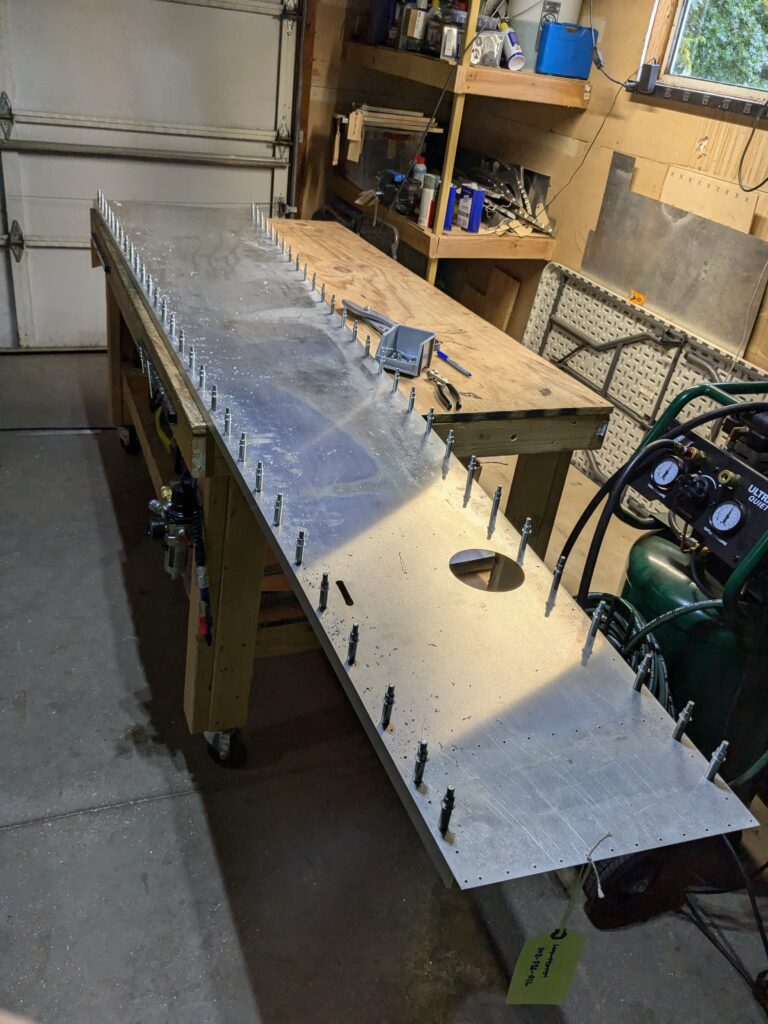

LH upper longeron pilot drilled in place

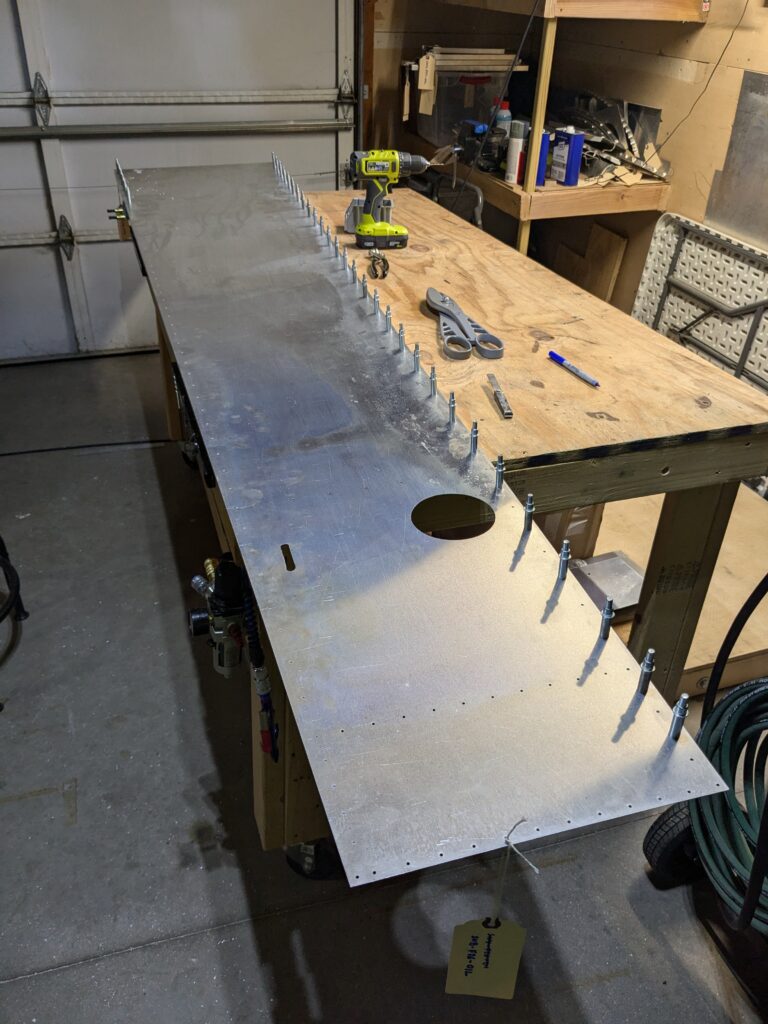

LH lower longeron pilot drilled in place and offset for bottom skin

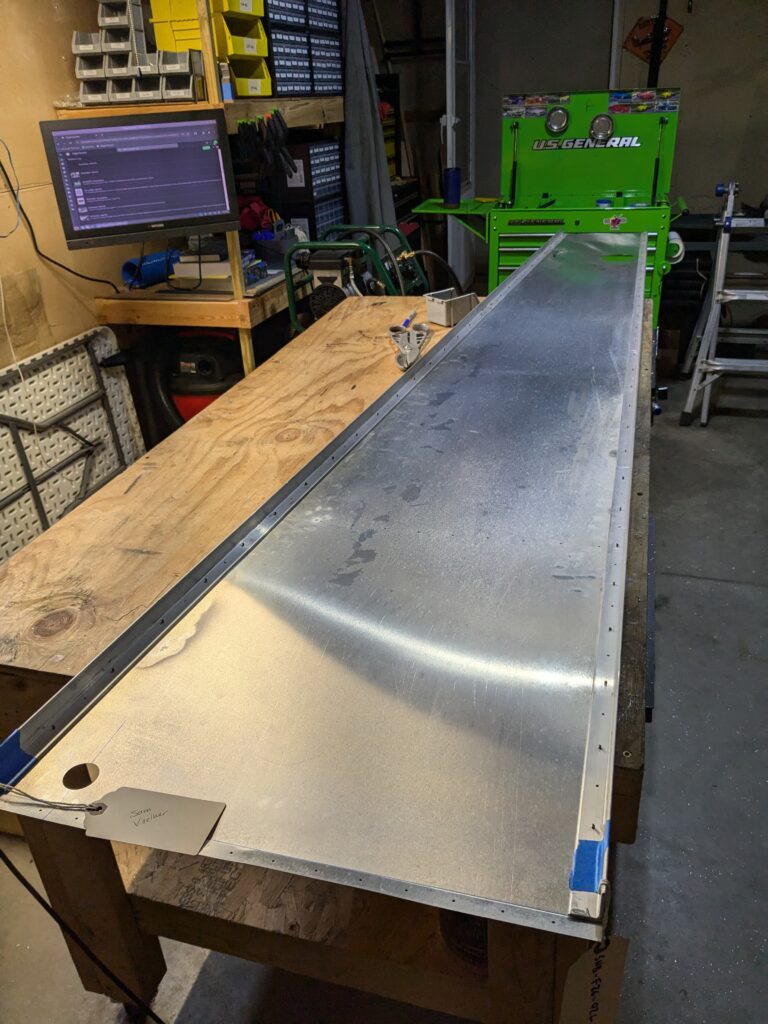

Inside face of LH aft tail section

Hours Worked: 1.38
