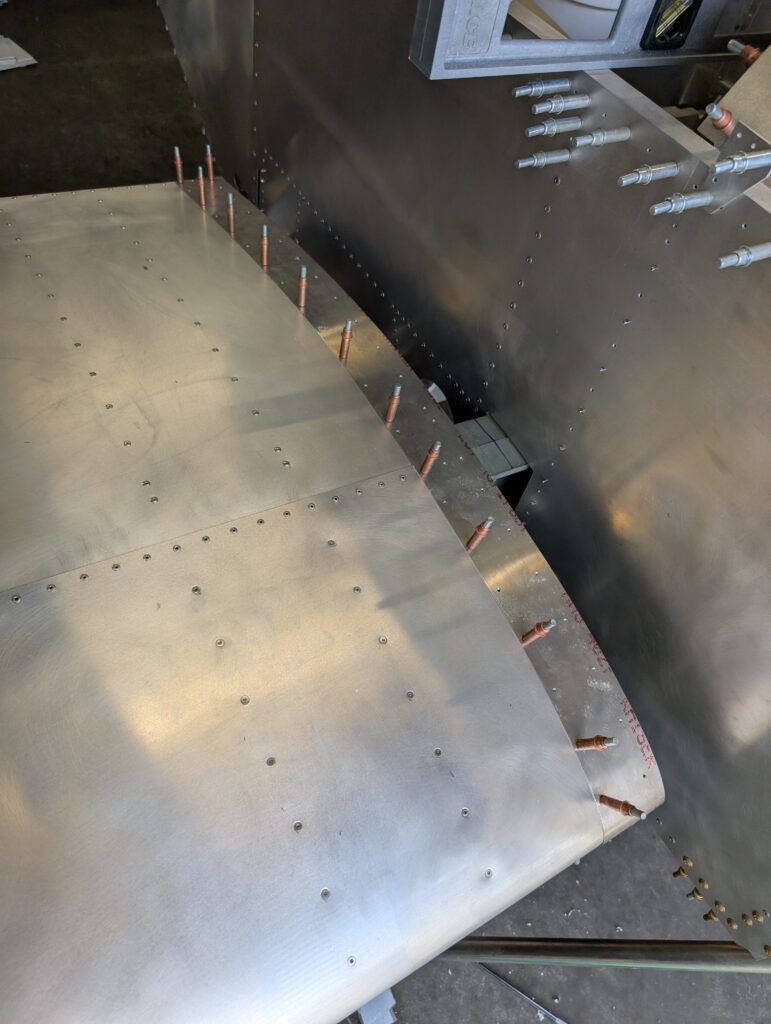

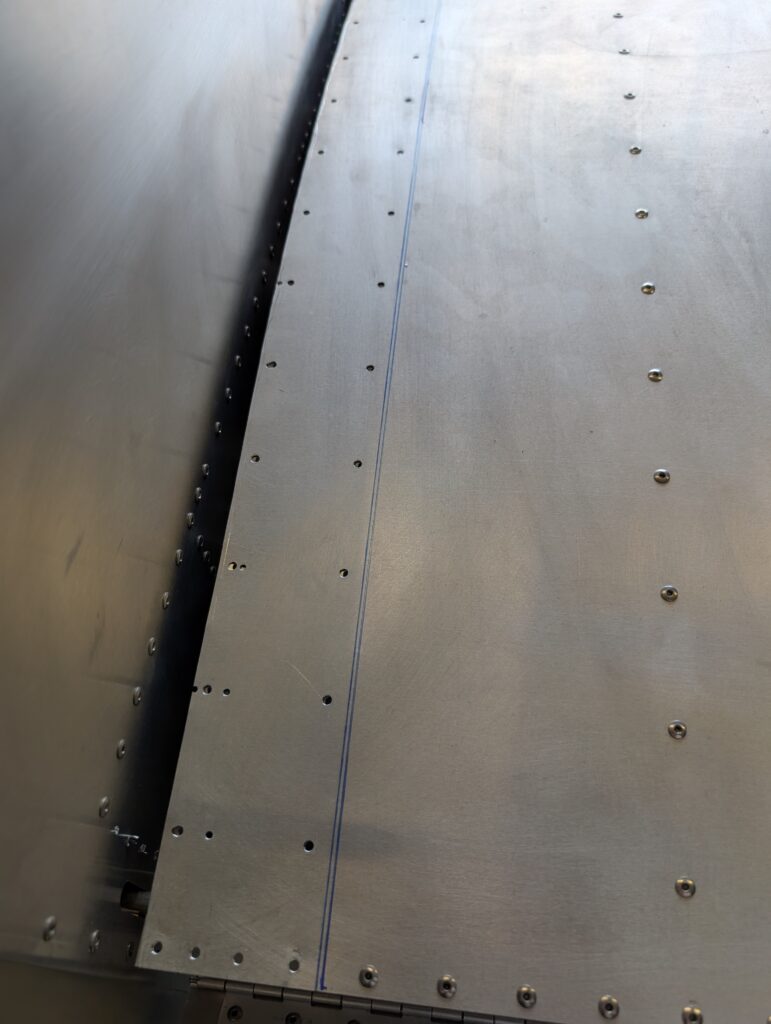

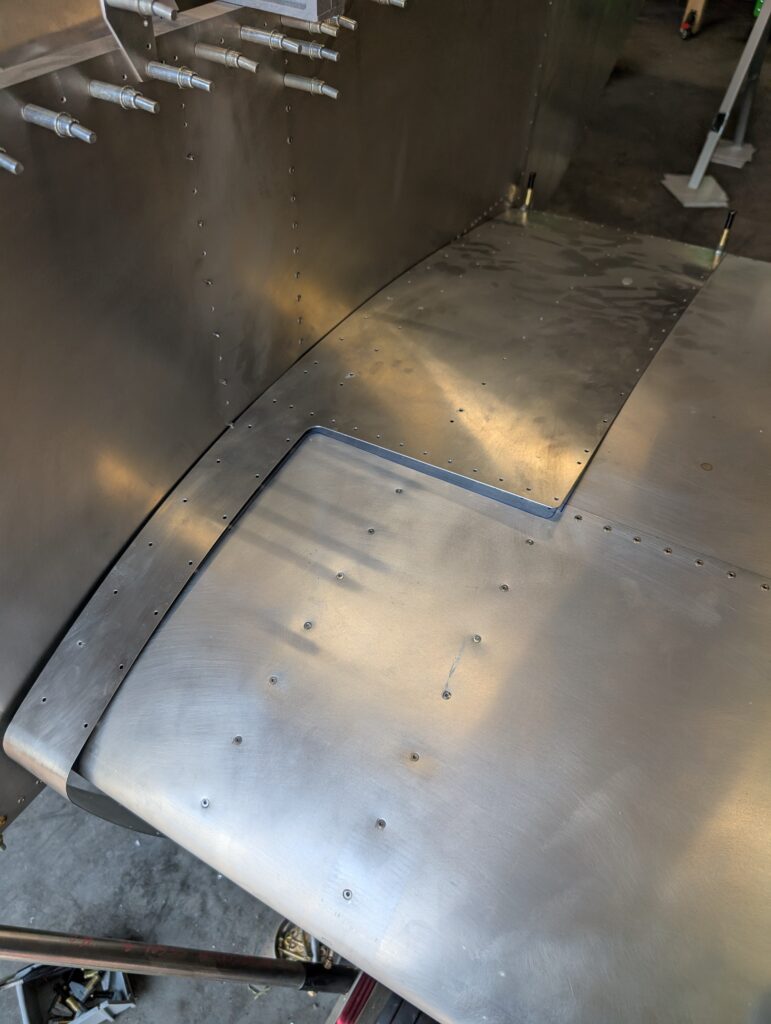

Slid wings out from fuselage (one at a time) and reinstalled wing root doublers with clecoes. Marked current edge of doublers onto wing skins with sharpie. Removed doublers then slid wings back into spar tunnel and pinned into proper place. Set wing doublers onto wings and slid them flush with fuselage side skins. Marked a second line onto the wing skins. Will use difference between the two lines to trim doublers for proper fit.
Hours Worked: 0.74
