Canopy and Windshield
-
Windshield Installation – Part 5
Using two people, reinstalled bolts in upper longerons, windshield skirt, and upper motor mounts. Applied torque check to bolts to monitor torque. Slid windshield into place and began installing bolts starting from forward center and working backwards. Used a piece of tape on wrench to prevent nut from falling out. Hours Worked: 1.95
-
Windshield Installation – Part 4
Routed fuel vent hose up through hole in glareshield and attached to fuel vent fitting with hose clamp. Clecoed newly-painted windshield skirt onto fuselage. Hours Worked: 1.30
-
Windshield Prep – Part 1
Began prepping the windshield components for paint and final assembly by updrilling and deburring the windshield skirt. Enlarged fuel door hole and installed Southco receptacle for fuel door fastener with flush rivets. Then updrilled windshield bow skirt and scotchbrited. Updrilled windshield bow holes with #36 drill bit then tapped for 6-32 screws perpendicular to the…
-
Windshield Removal
Removed windshield components to prep for painting and updrilling. Deburred upper firewall holes. Hours Worked: 0.52
-
Canopy Components – Part 3
Clamped canopy frame components together and checked fitment on fuselage. Forward windshield flange might need a bit of trimming but overall fit good. Pilot drilled then updrilled forward and aft canopy bows to side rails. Cut canopy hinge pieces from P5 piano hinge stock then pilot drilled per plans. Modified hinge pin per plans and…
-
Windshield Installation – Part 3
Completed pilot drilling of windshield skirt holes into upper longerons. Updrilled skirt mounting holes in longerons and upper firewall. Decided not to updrill windshield holes since clecoes would not hold well in 9/64″ holes. Hours Worked: 1.25
-
Windshield Installation – Part 2
Clamped together rear edges of windshield skirt and windshield and pilot drilled pieces together starting at the top center and working down both sides. Marked centerline on the windshield bow and pilot drilled top center hole off of plane. Clecoed bow into place and aligned to existing holes in windshield. Pilot drilled windshield bow holes…
-
Windshield Installation – Part 1
Marked out 1″ skin overlap line on windshield skirt. Aligned skirt with windshield centering fuel door cutout in windscreen and aligned back edges together. Marked skirt location onto wind screen then pilot drilled fuel door holes in windshield with #40 drill bit. Installed windshield skirt onto fuselage then through drilled side skin holes into upper…
-
Windscreen Install Prep
Removed top row of clecoes from upper longerons and upper engine mount screws to prepare for windscreen installation. Hours Worked: 2.17
-
Canopy Components – Part 2
Took SNB-D03-09L and updrilled holes per plans; inside holes to 3/16″ and outside holes to 13/64″ to be tapped. Countersunk 3/16″ holes for flush screws and tapped outside holes with 1/4″-28 tap set for canopy alignment pins. Hours Worked: 0.64
-
Canopy Components – Part 1

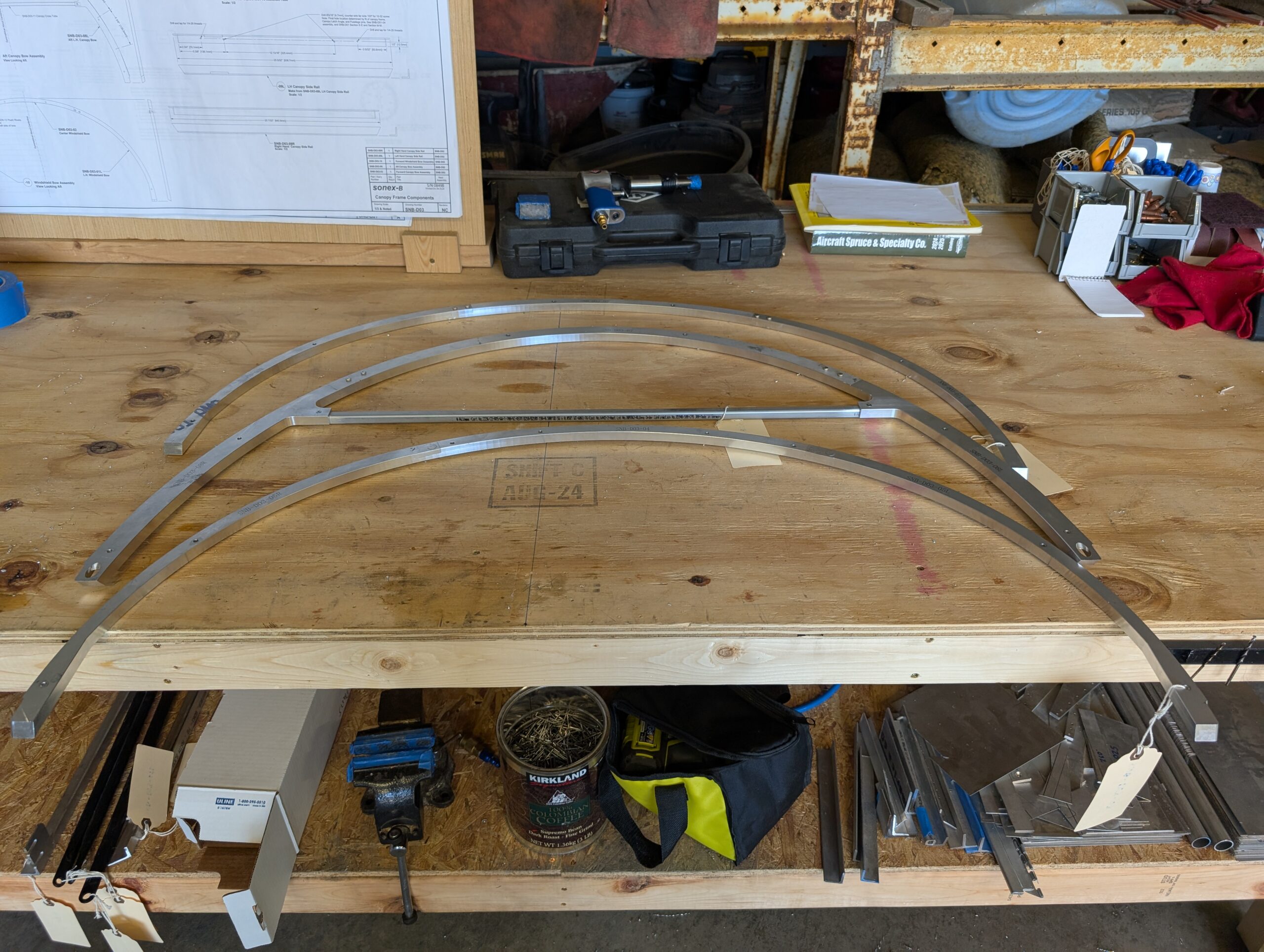

Began canopy/windshield frame prep by working on canopy forward aft bows and windshield bow. For canopy bows, started by countersinking bow holes for -6 flush rivets. Riveted components together using -6 solid rivets. Laid out bows on workbench and marked centerline on bows. Measured out pilot hole locations for attach screws per plans and pilot…
