SNX-F23: Aft Fuselage Details
-
Aft Fuselage Part Prep – Part 3
Creation of -09 and -11 assemblies from channel stock. Since assemblies were simple, skipped documenting intermediate step of creating F23-10 and F23-13 support channels in build log. Following B model plans, took -01 tail wheel mount and drilled 3/16″ hole in bottom wall only of through tube. Hours Worked: 1.23
-
Aft Fuselage Part Prep – Part 2

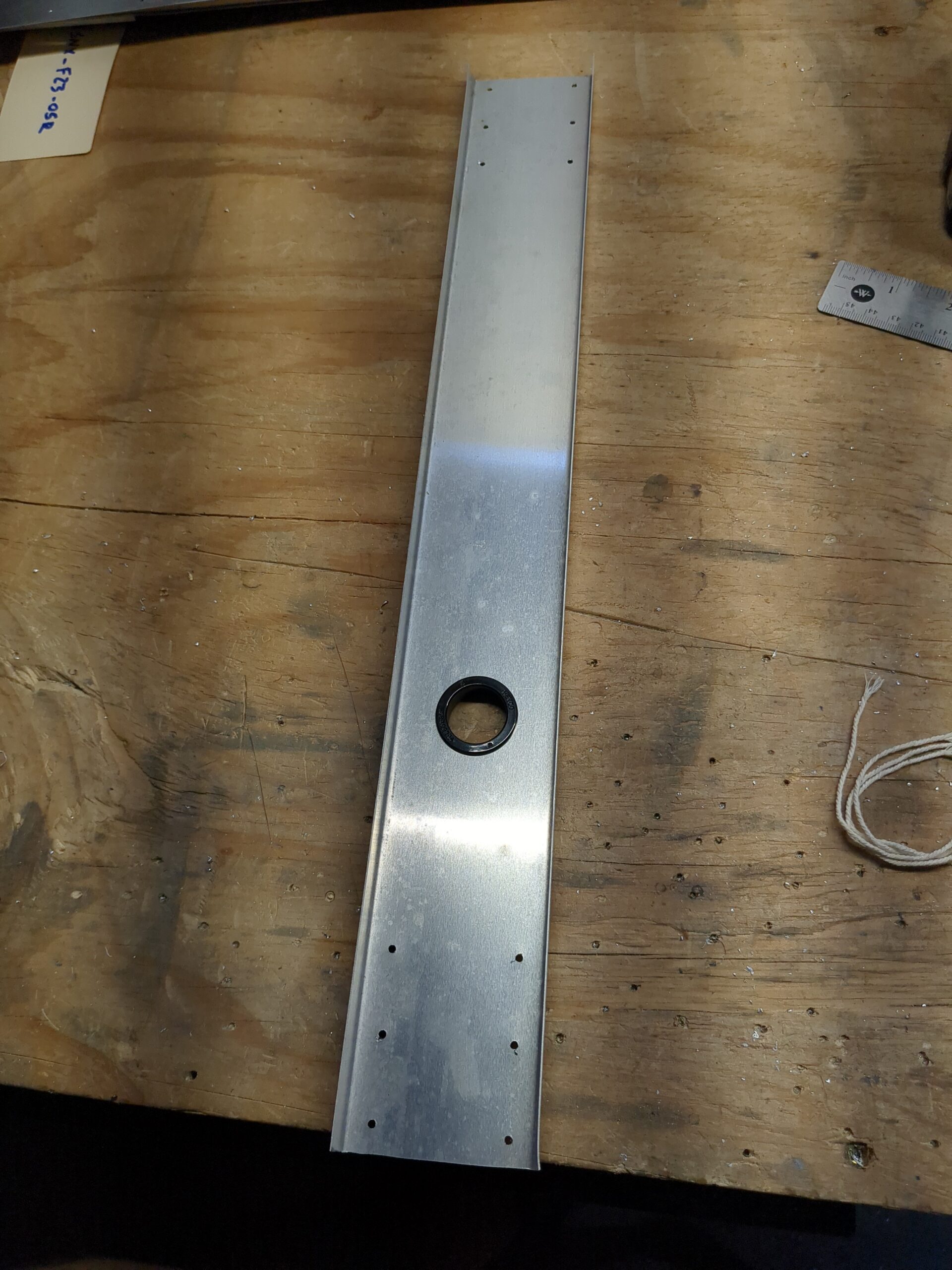

Creation of F23 miscellaneous parts per legacy plans. Made -02 bulkhead from .032 sheet rather than blank due to not knowing it was available until it was too late. Channel cut with hole cutter. -03 and -04 angles cut on bandsaw, bent to 95 degrees, and holes cut with step bits. -05L/R mount assembly parts…
