SNX-W22: Wingtips
-
Wingtip Installation

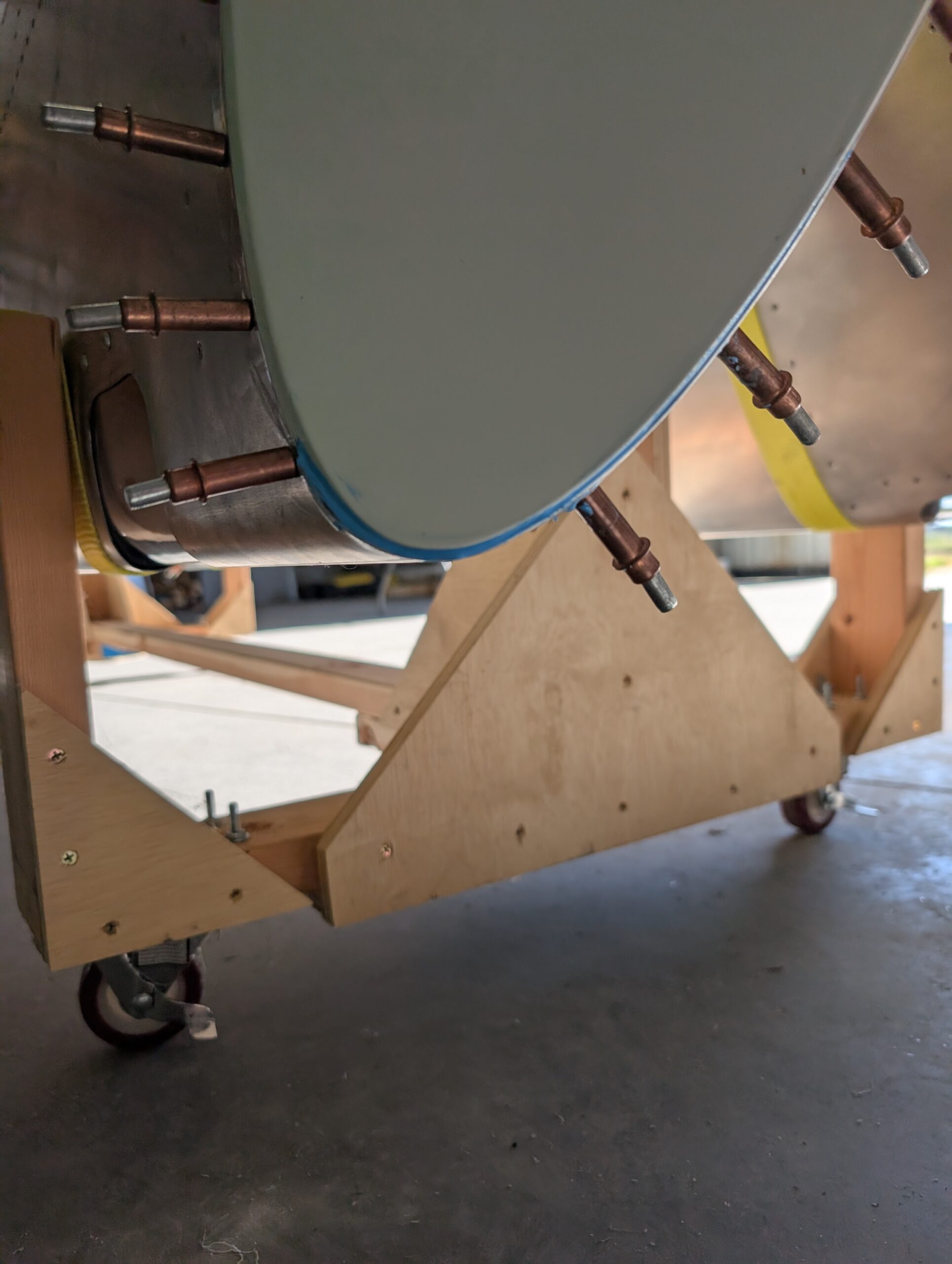

Installed nutplates for wingtip light fairings onto wing tips and riveted wingtips onto wings with AAP-42 aluminum rivets. After wingtips were installed, sanded rivets in preparation of paint. Hours Worked: 1.30
-
Wing Tip Finishing – Part 2

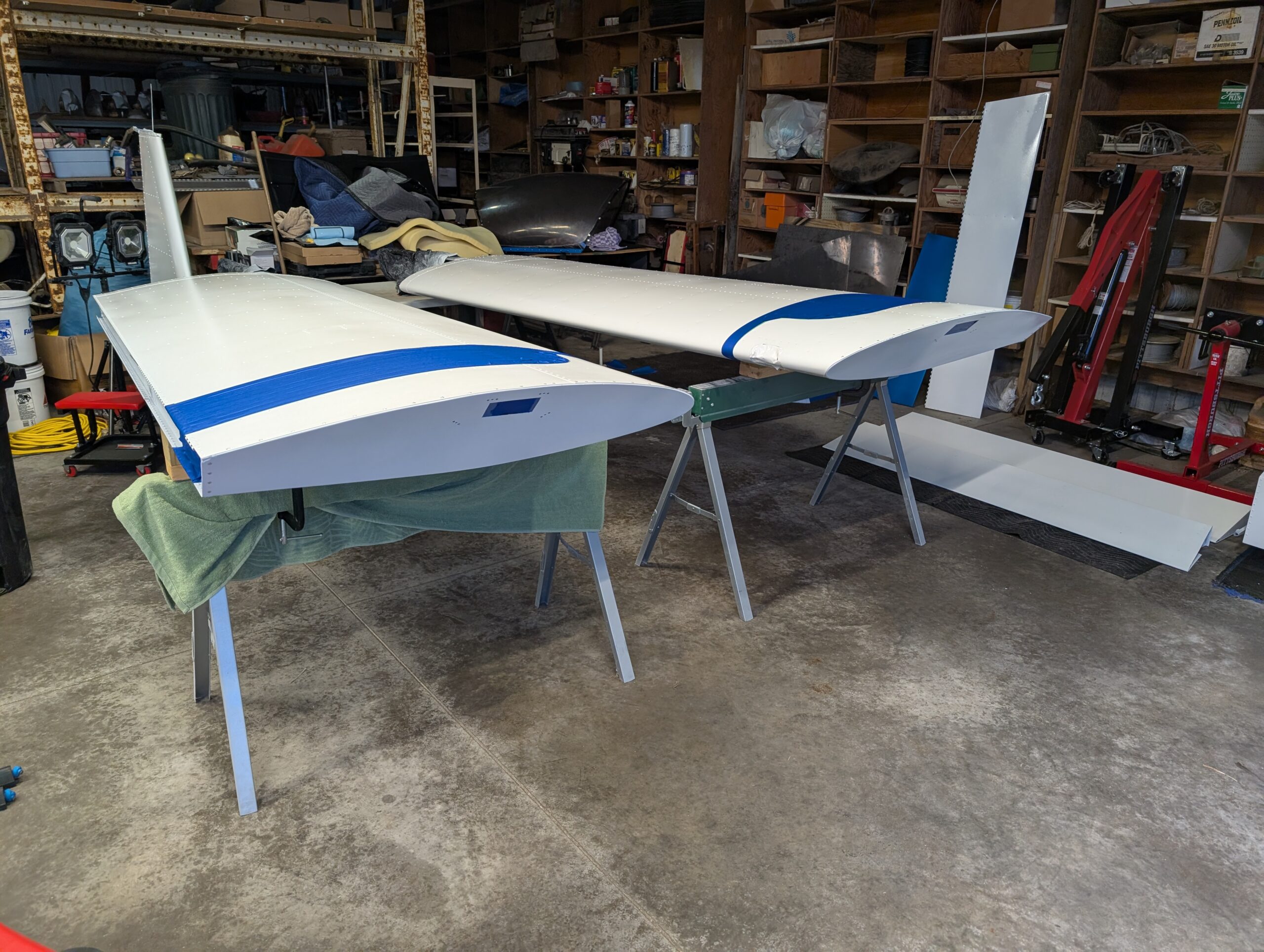

Removed wing tips from wing after letting SuperFil cure. While not the most elegant (or clean) epoxy job, it did take up the gap pretty well. Removed packing tape from edge of wing and lightly reshaped the edge of the wingtips. Removed ailerons and faps from the wings to prepare for paint. Hours Worked: 0.90
-
Wing Tip Finishing – Part 1
Began prepping wingtips and tip light fairings for paint and final finishing. Located tip lights onto wing tip light fairings and drilled wire pass through hole and mounting screw holes; tip lights will attach to fairing with Dynon panel screws and elastic nuts. Located tip light fairings on the wing tips by aligning center of…
