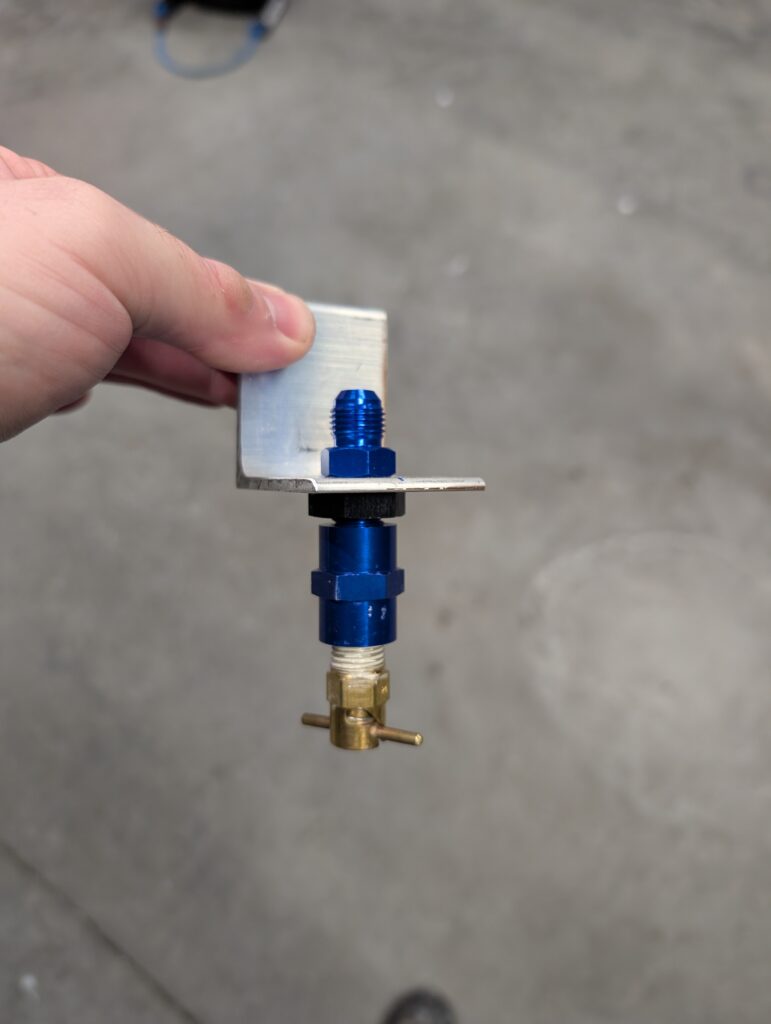

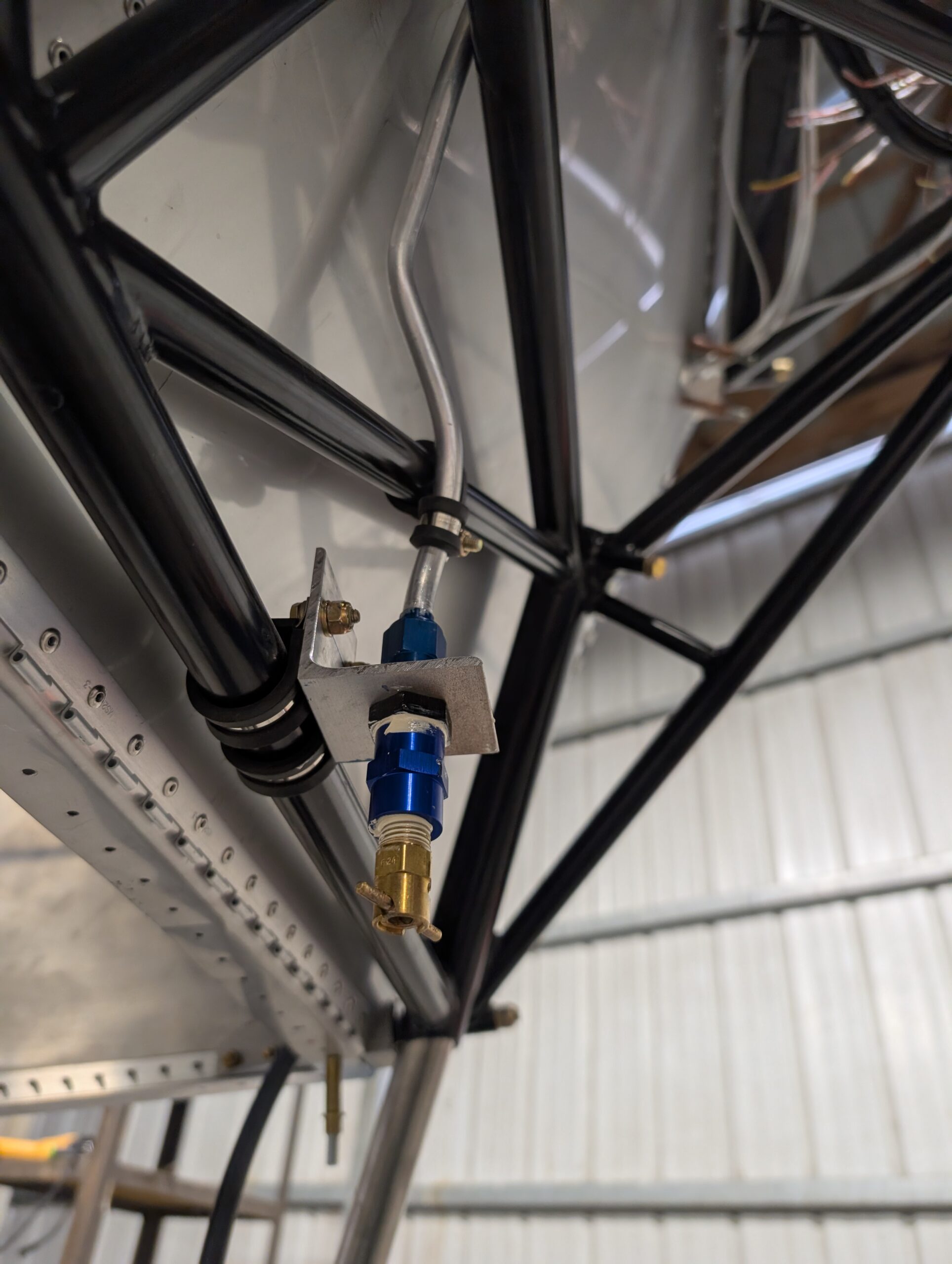

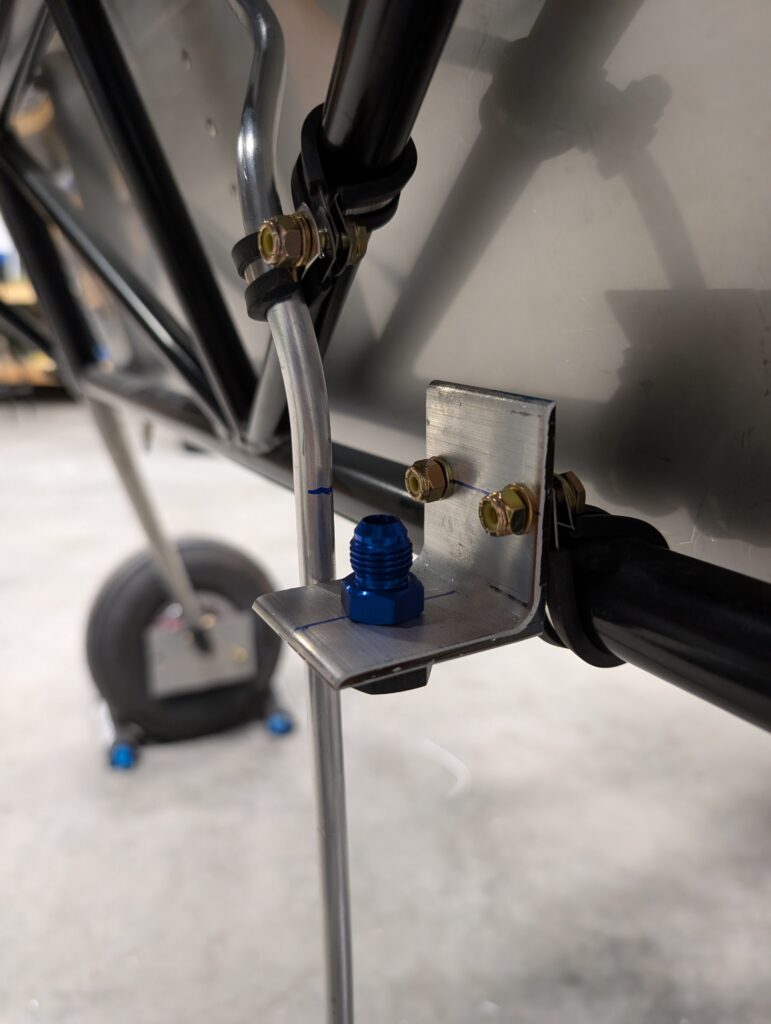

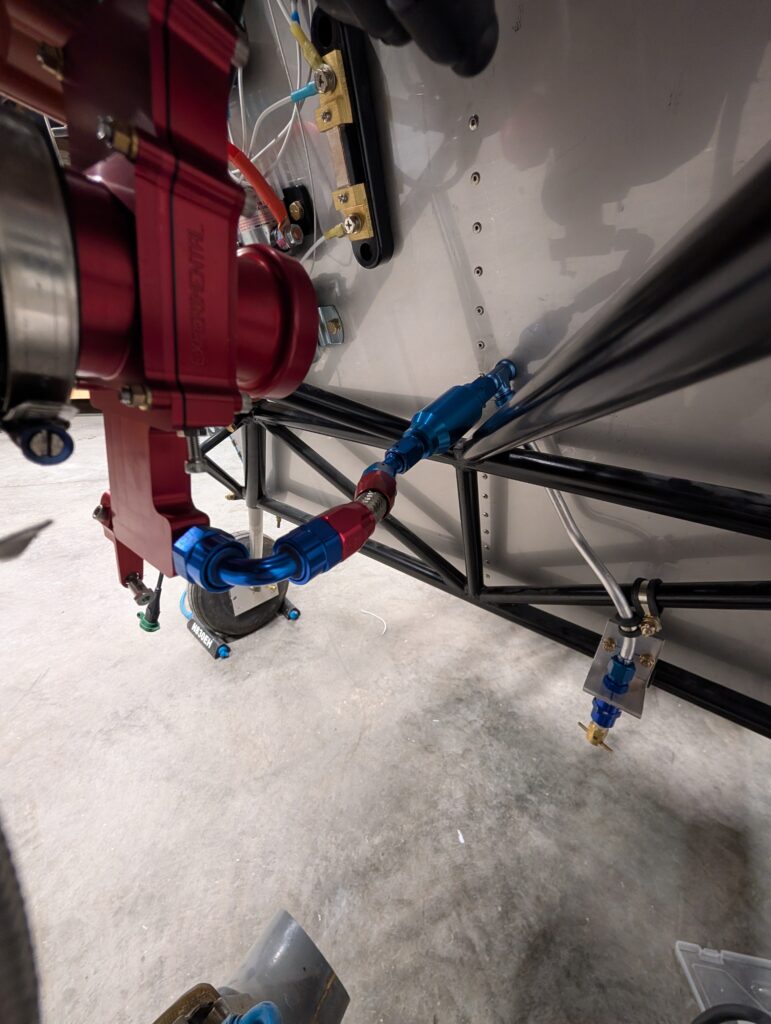

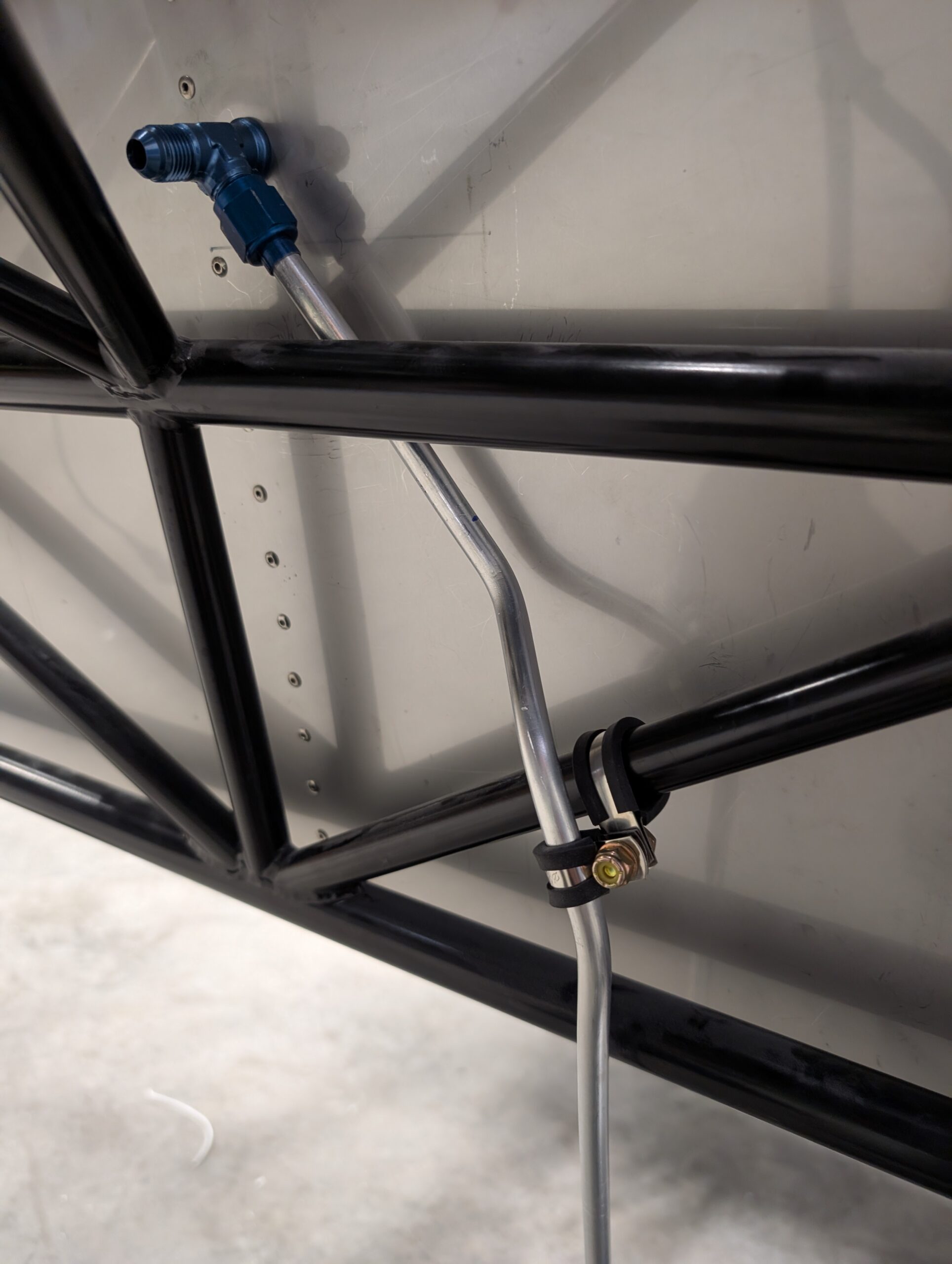

Began working on firewall-forward fuel system by bending solid fuel line for drain branch. Ran -6 fuel line behind upper part of engine mount then bent line to come forward of bottom part. Created a drain cock mount out of scrap aluminum angle and secured drain cock and mount to engine mount with Adel clamps. Added AN fittings to each end of drain line then prepared ends and secured drain line with an Adel clamp. Made small fuel line to go in between fuel filter and AeroInjector then installed fuel filter and test fit braided line. Will leak test before adding fire sleeve to firewall forward portion of fuel system.
Hours Worked: 3.20
