Throttle Bell Crank – Part 1

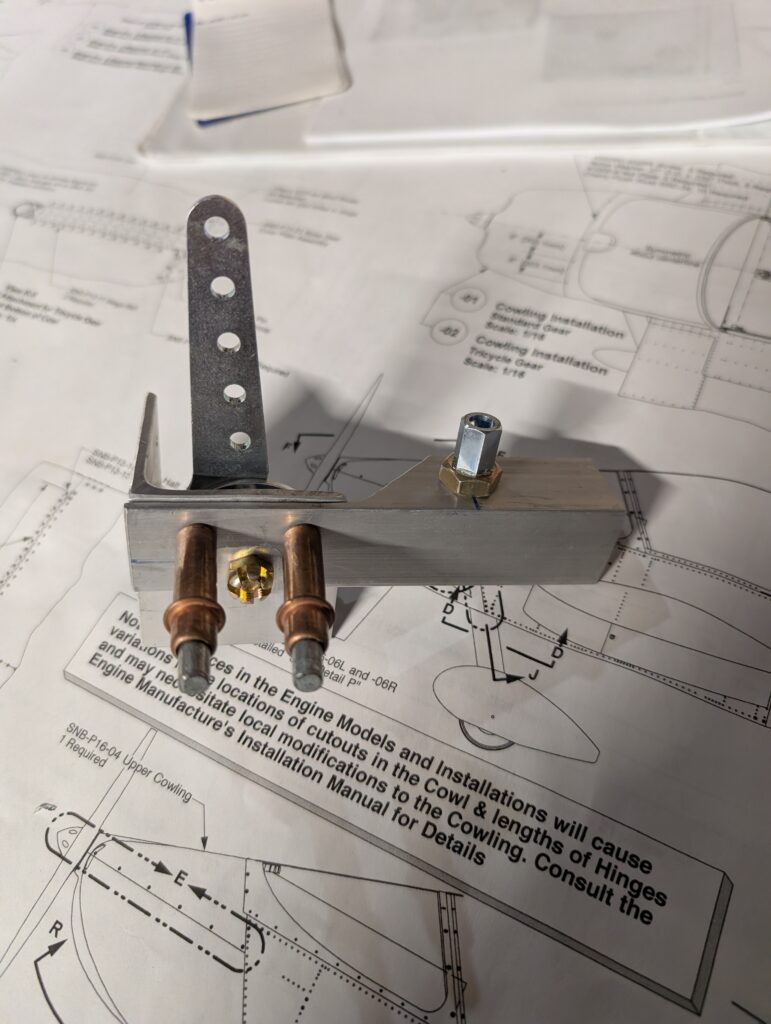

Because we are planning to use a traditional push-pull throttle (instead of a Sonex throttle quadrant) with the AeroInjector, we needed a way to reverse the throttle direction. Assembled throttle bell crank and created mounting bracket from scrap 2″ and 1″ aluminum angle. Cannibalized cable parts from spare Sonex throttle components. Will need to final rivet pieces together once bracket is located and throttle cable is set.

Hours Worked: 1.54
