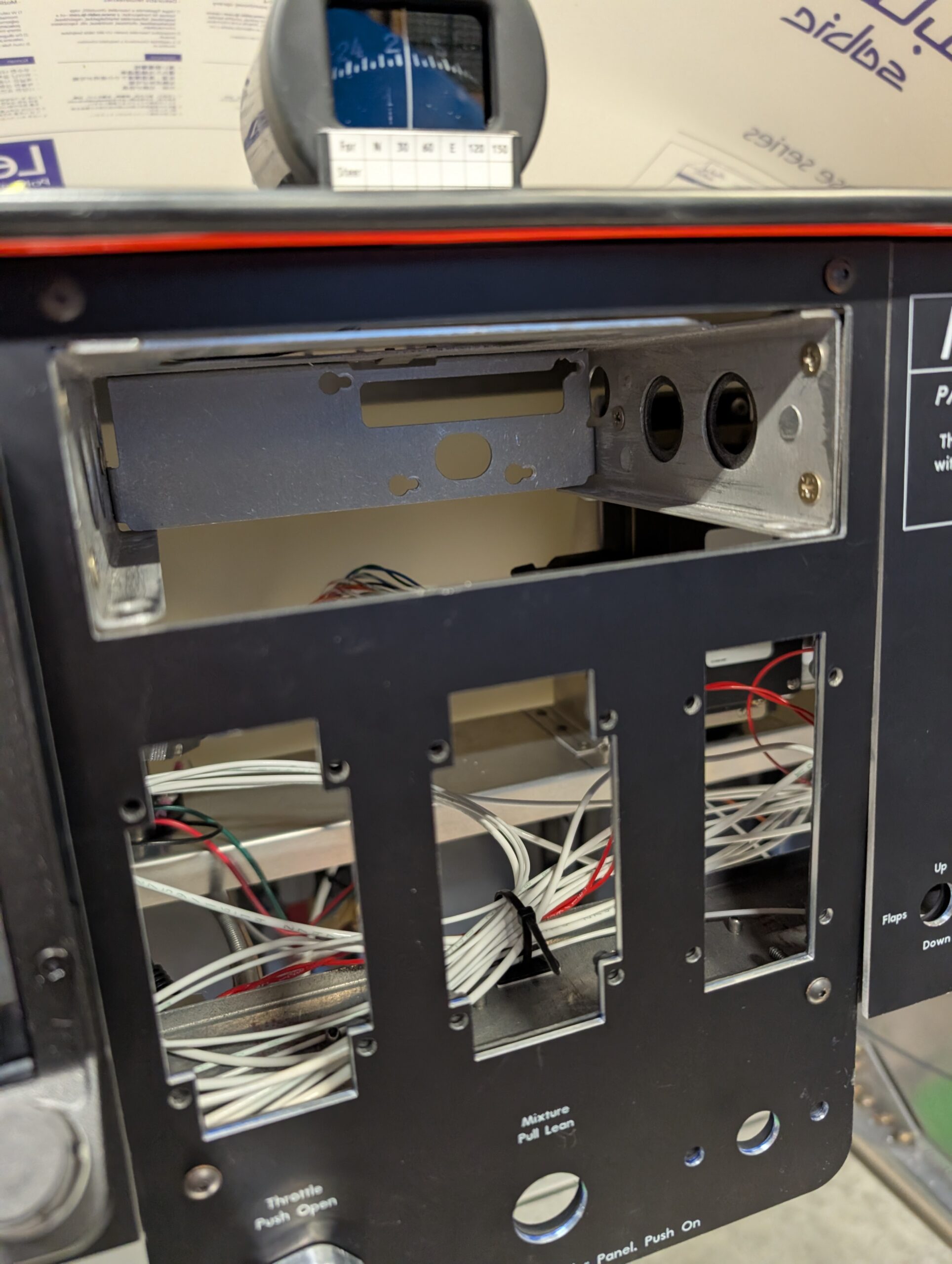

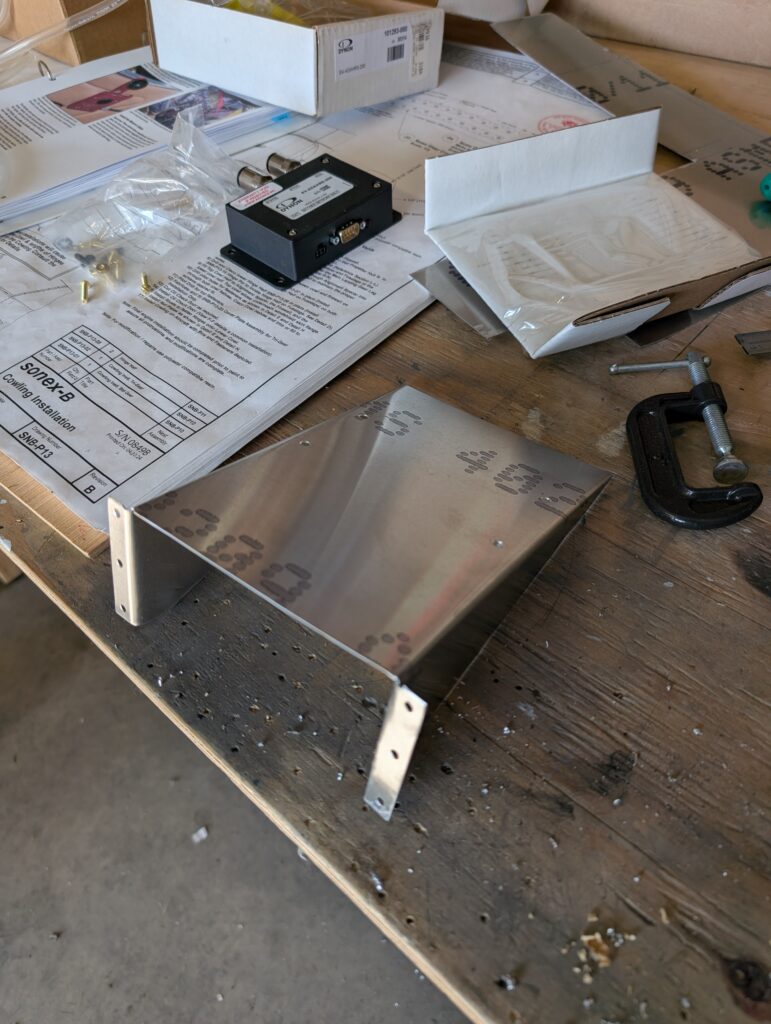

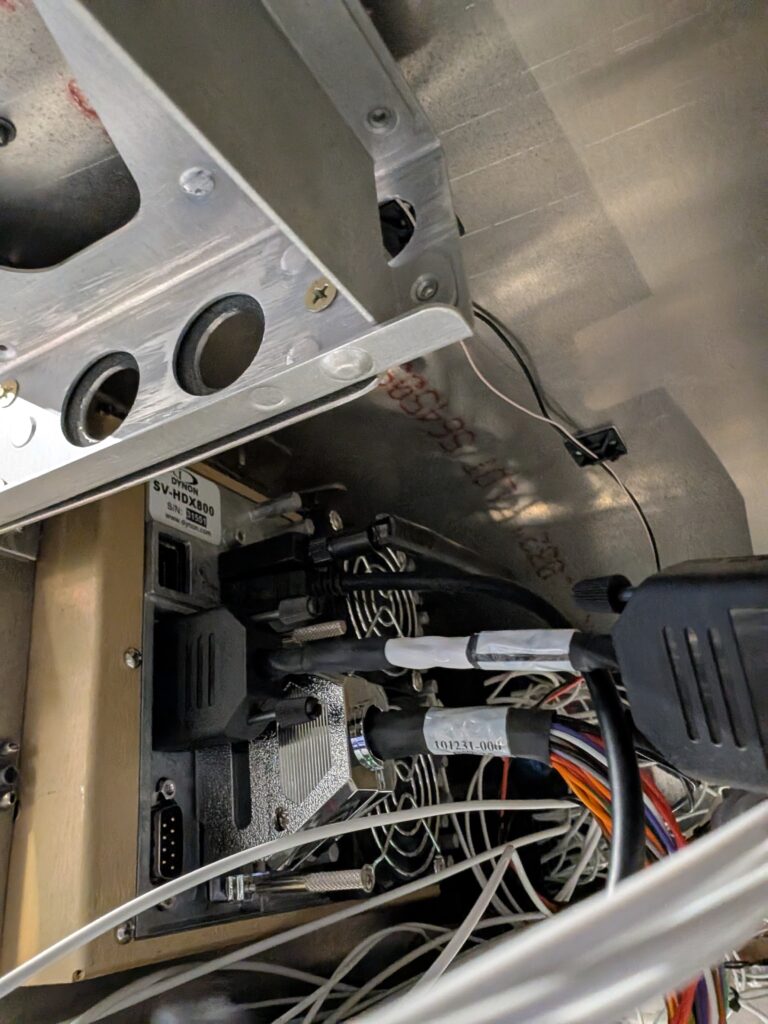

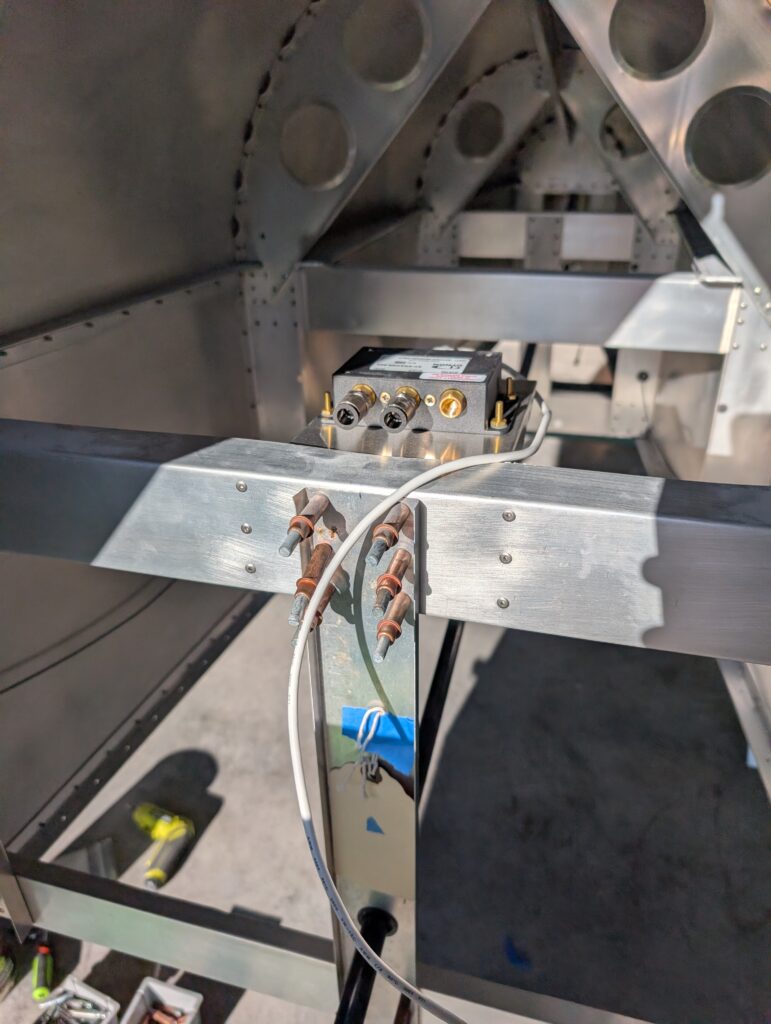

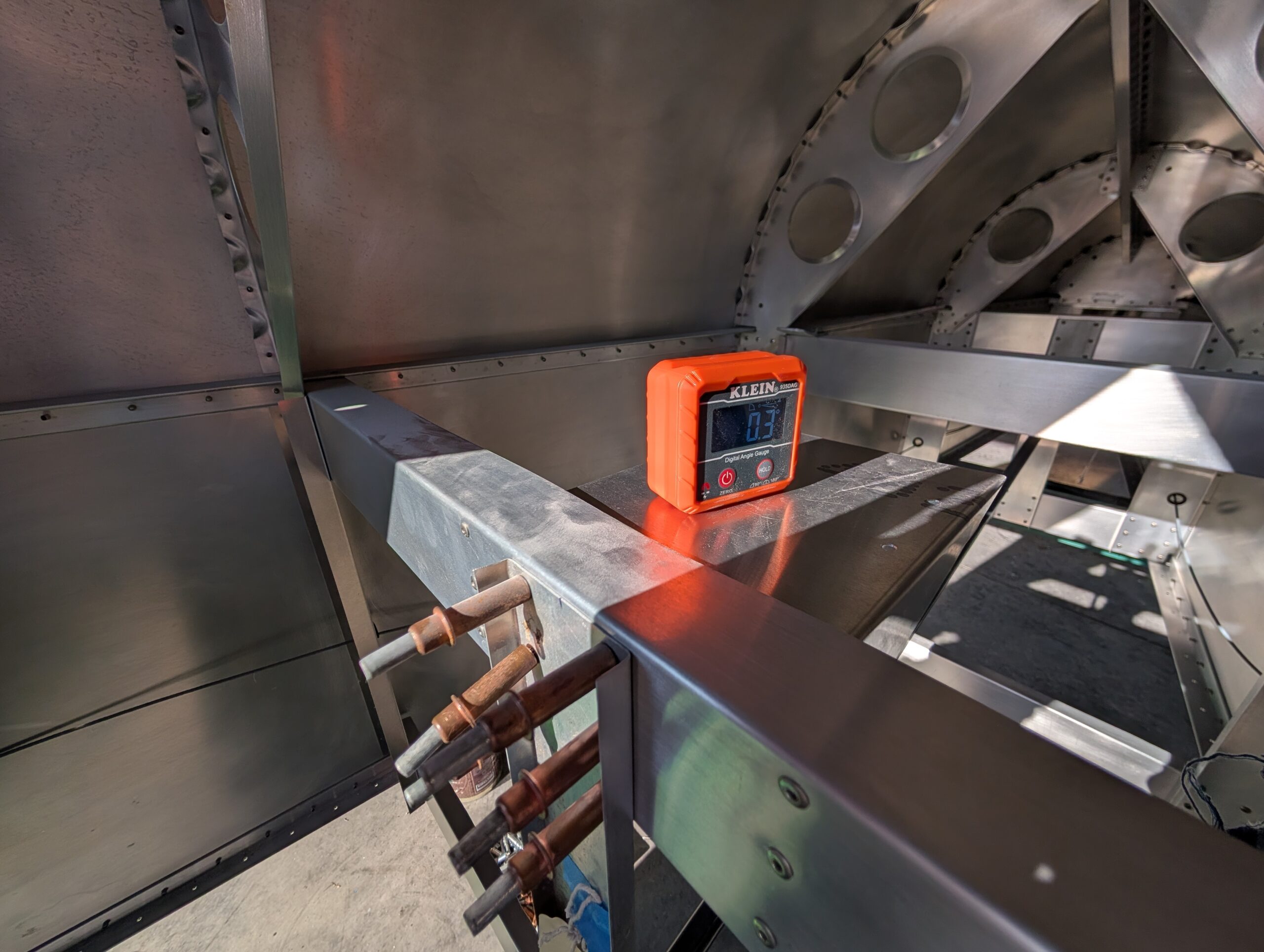

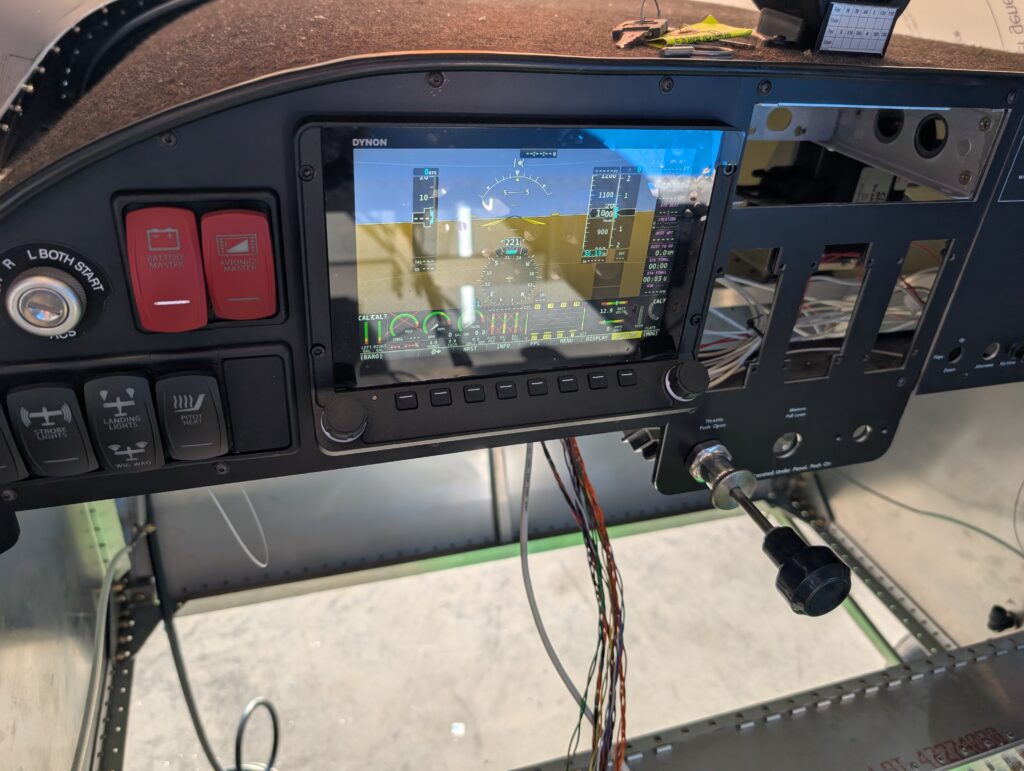

Installed GPS 175 tray behind panel in preparation for GPS install. Connected SkyView WiFi adapter to back of display along with USB extension (which will be secured at a later time). Fabricated shelf for SV-ADAHRS-200 box from 0.032 sheet. Bent and cut flat template then clecoed onto back side of the #2 cross tie. Checked level-ness of shelf then riveted shelf. Secured unit to shelf with brass and nylon hardware to not interfere with magnetometer. Ran temporary SkyView network cable to display to check operation; ops check good (so far).
Hours Worked: 1.54
