AN365-632A
-
Wing Root Wiring
Attached wing tip lights to tip light fairings then installed DT connectors. Installed lights and fairings onto tips of wings. Terminated wing root wires at bulkhead connectors and tested functions. Reinstalled pneumatic bulkhead fittings for RH wing. Installed CHT/EGT harness and ran wires through firewall grommet. Installed engine sensor harness as well. Hours Worked: 2.87
-
Canopy Installation – Part 2

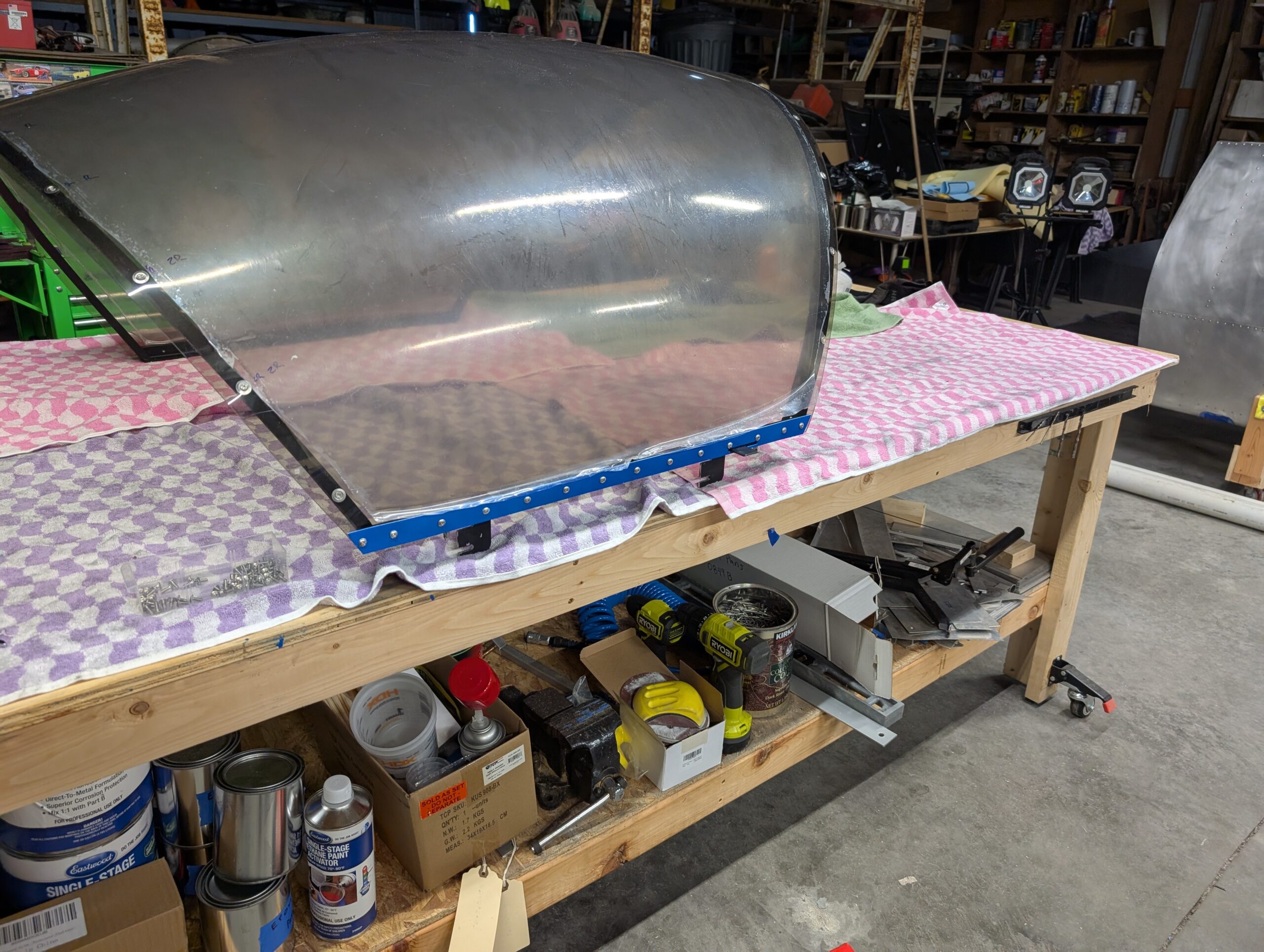

After painting, installed canopy side trim and canopy hinge half onto canopy assembly with 6-32 screws. Canopy ready for installation onto fuselage once paint is complete. Hours Worked: 0.77
-
Canopy Installation – Part 1
Began final canopy installation by drilling the rest of the hinge rivet holes in the upper longeron and installing rivets. Quick painted the rivets by hand with a brush along with other minor touchups of black paint. Updrilled canopy hinge and side trim holes to 9/64″ and deburred. Installed closure spring on the canopy latch…
