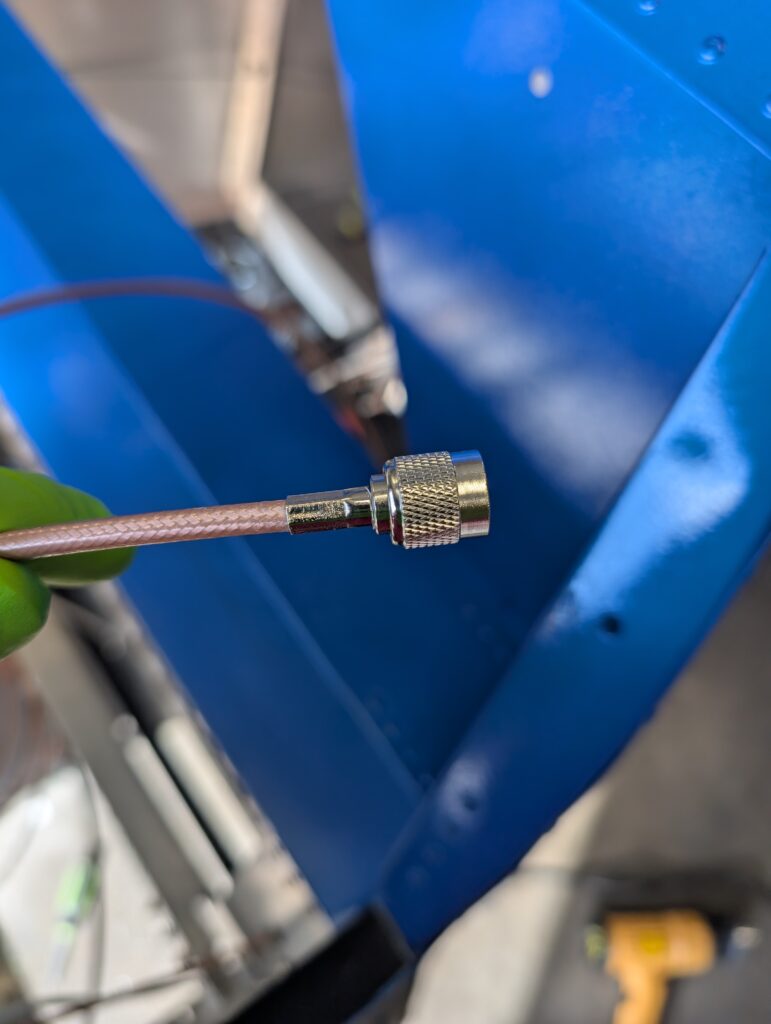

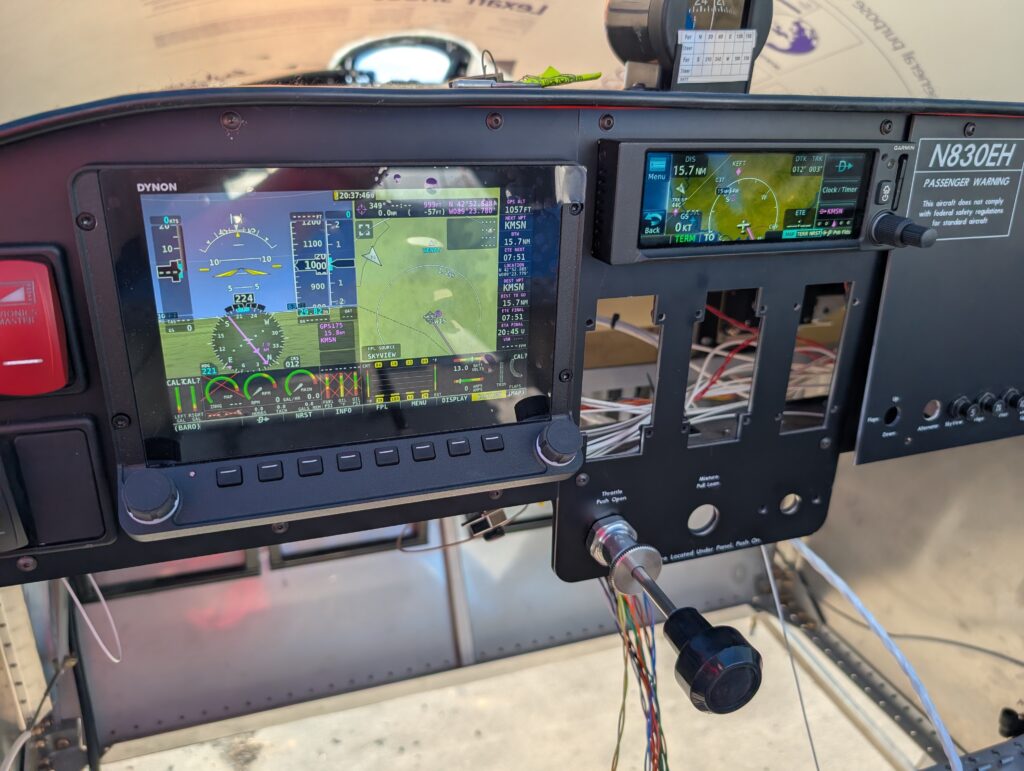

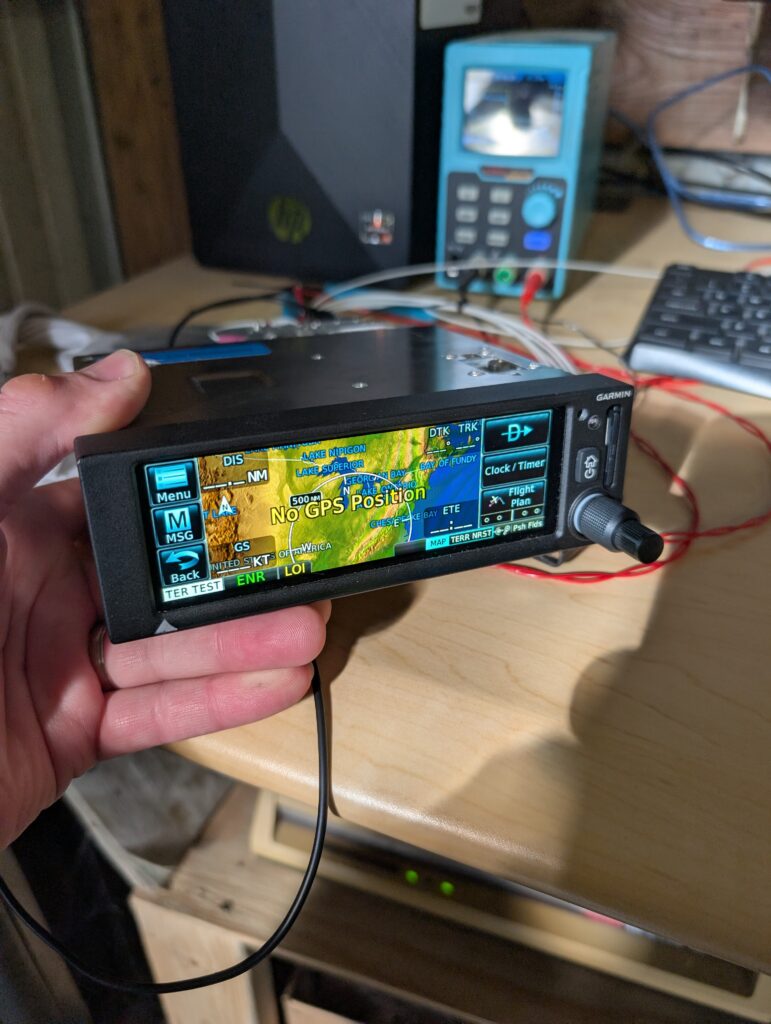

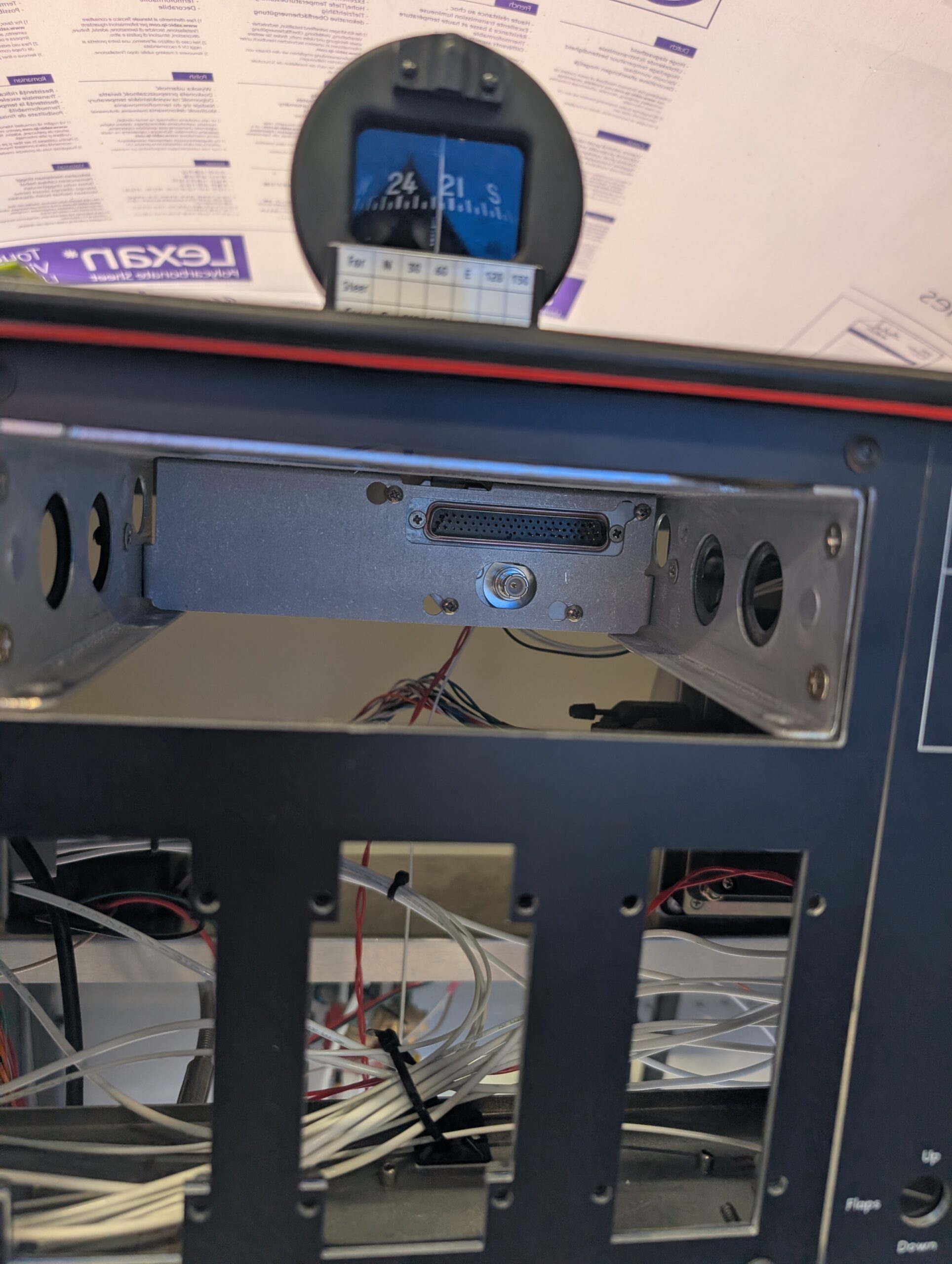

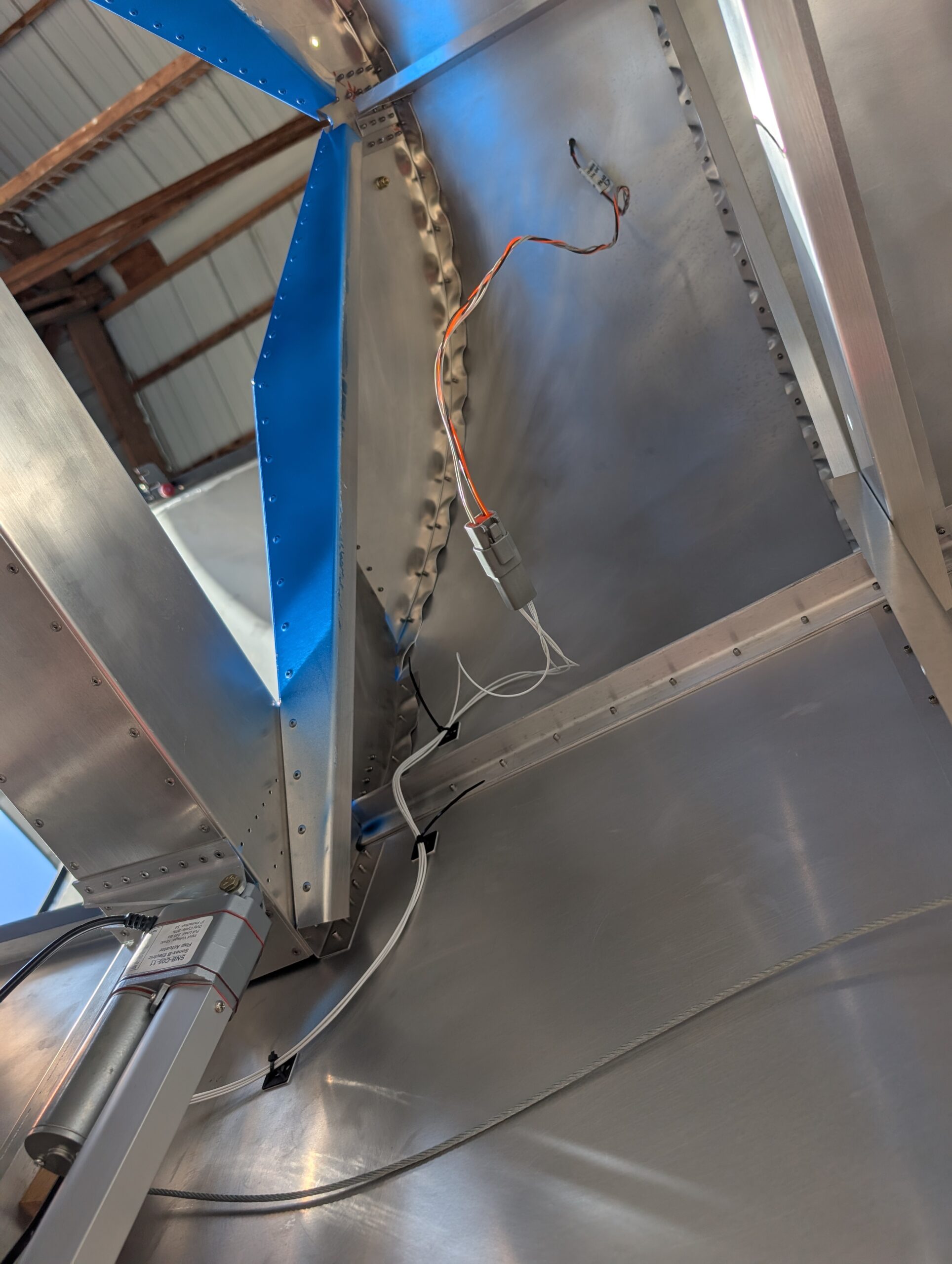

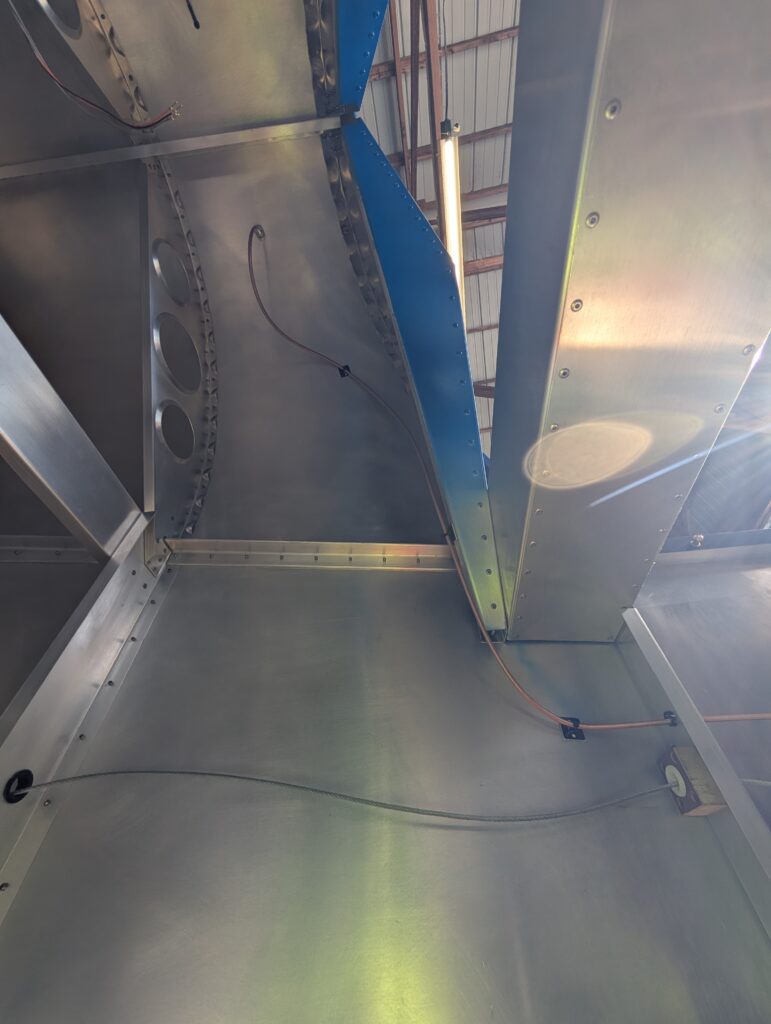

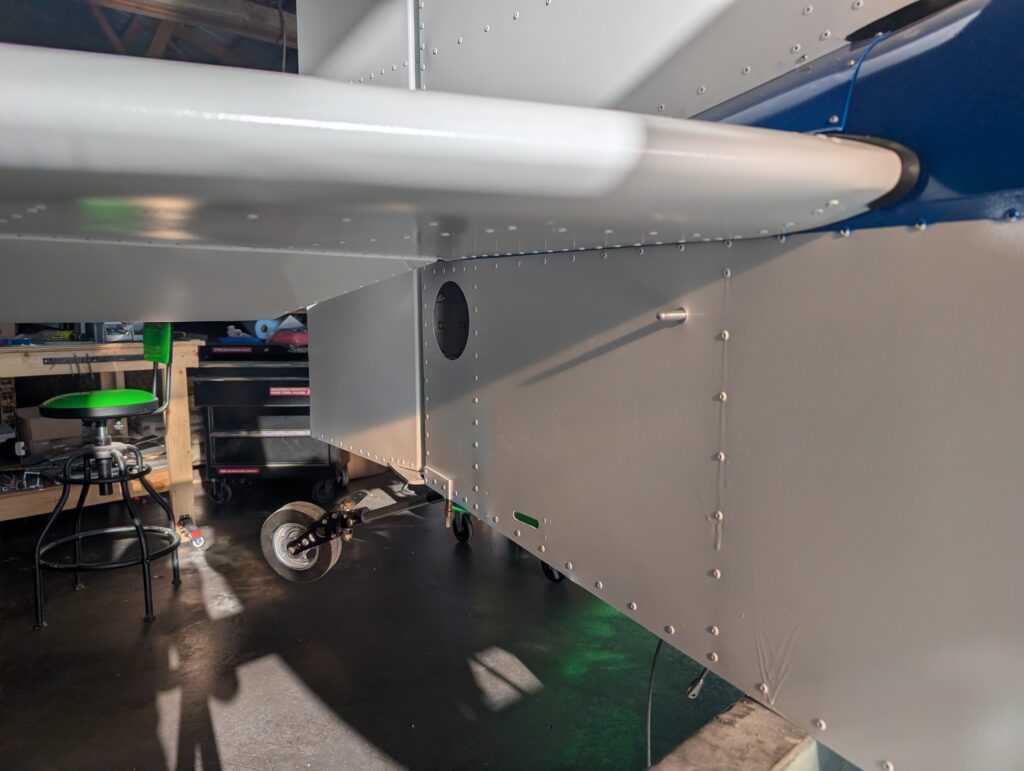

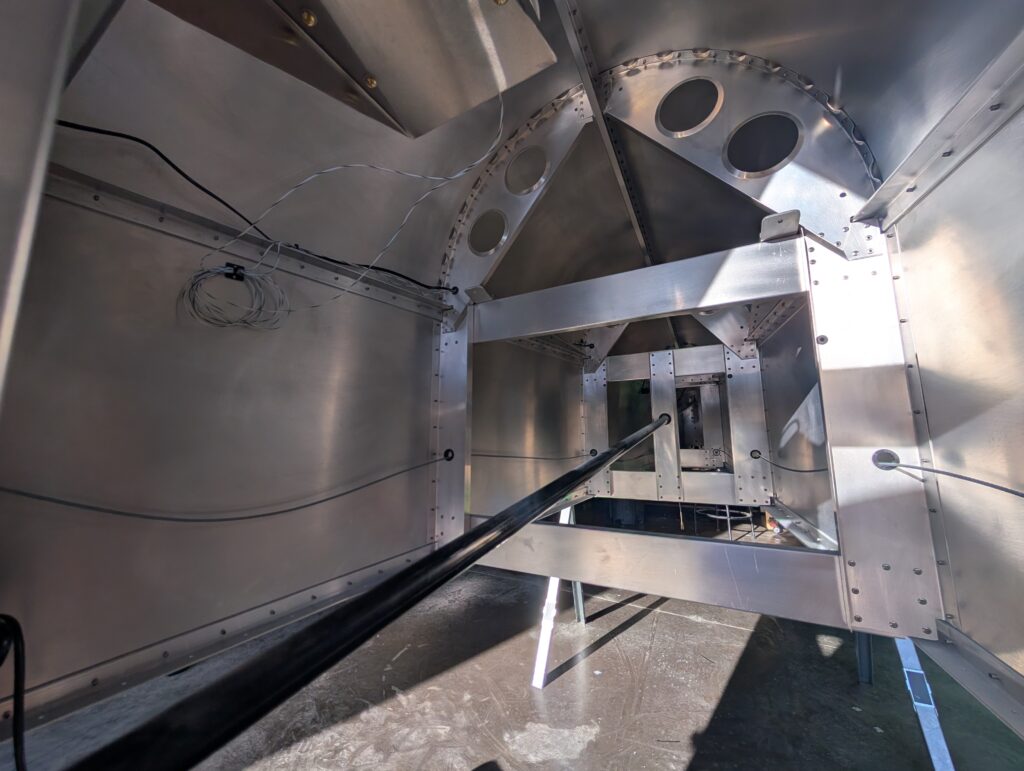

Diagnosed GPS175 screen issue by dissassembling unit and cleaning and reseating screen ribbon connectors; ops check good. Installed GPS harness onto back of tray and wired up ground and power connections. Installed unit and tested; ops check good. Fabricated antenna cable from RG400 coax and drilled center holes for both Dynon and Garmin GPS antennas. Spaced center of antennas 9 inches apart per Garmin recommendation. Temporarily installed Garmin antenna and tested; checked good. Extended Dynon display harness for SV-GPS-250 with wire splices and ran wires along RH side of fuselage to baggage compartment. Installed DT connectors on antenna and display harness. Still need to mount antennas so will leave runs long for now. Located OAT probe under RH side of horizontal stabilizer and ran wires along with ELT remote harness along RH side of aft fuselage.
Hours Worked: 6.35
