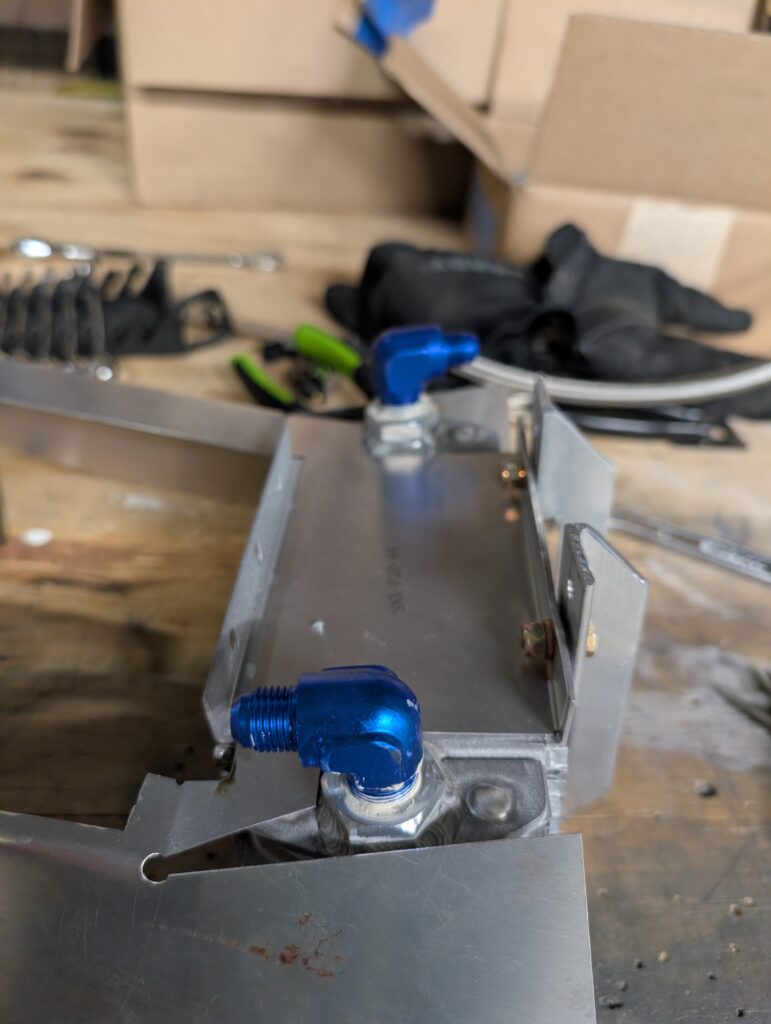

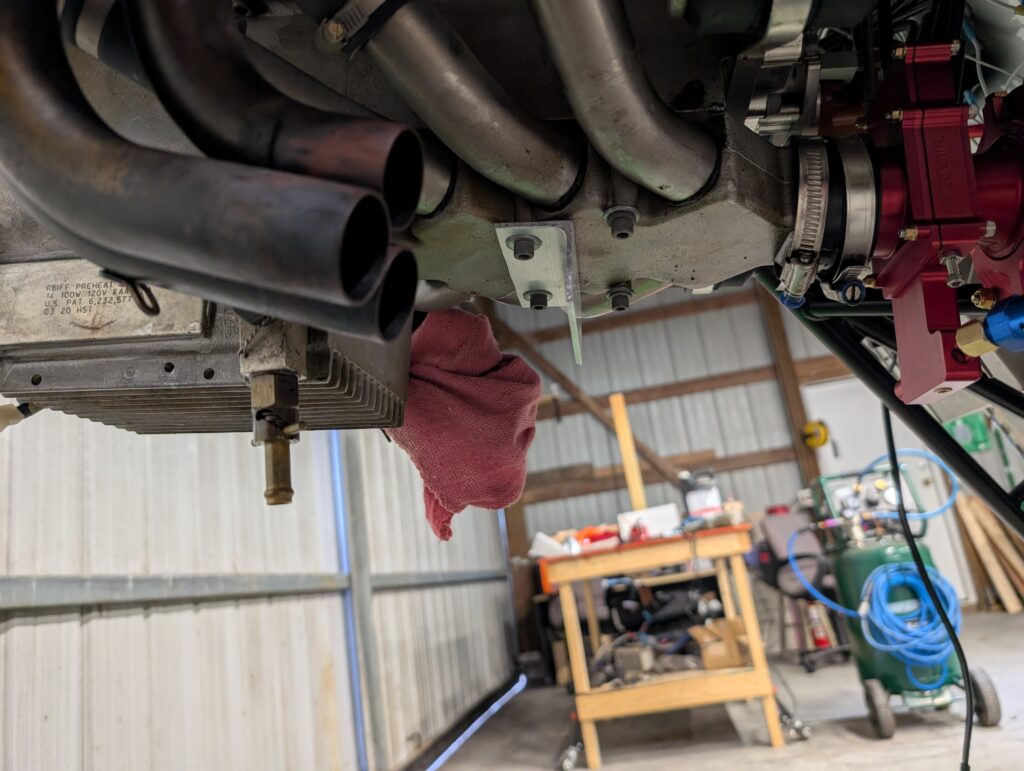

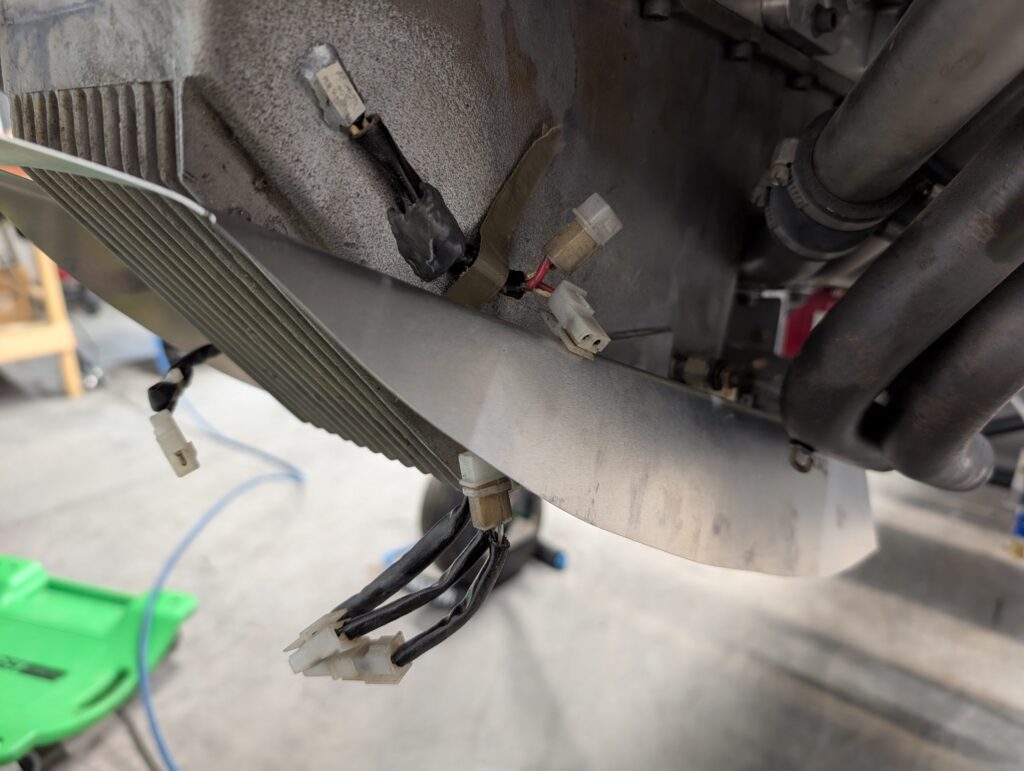

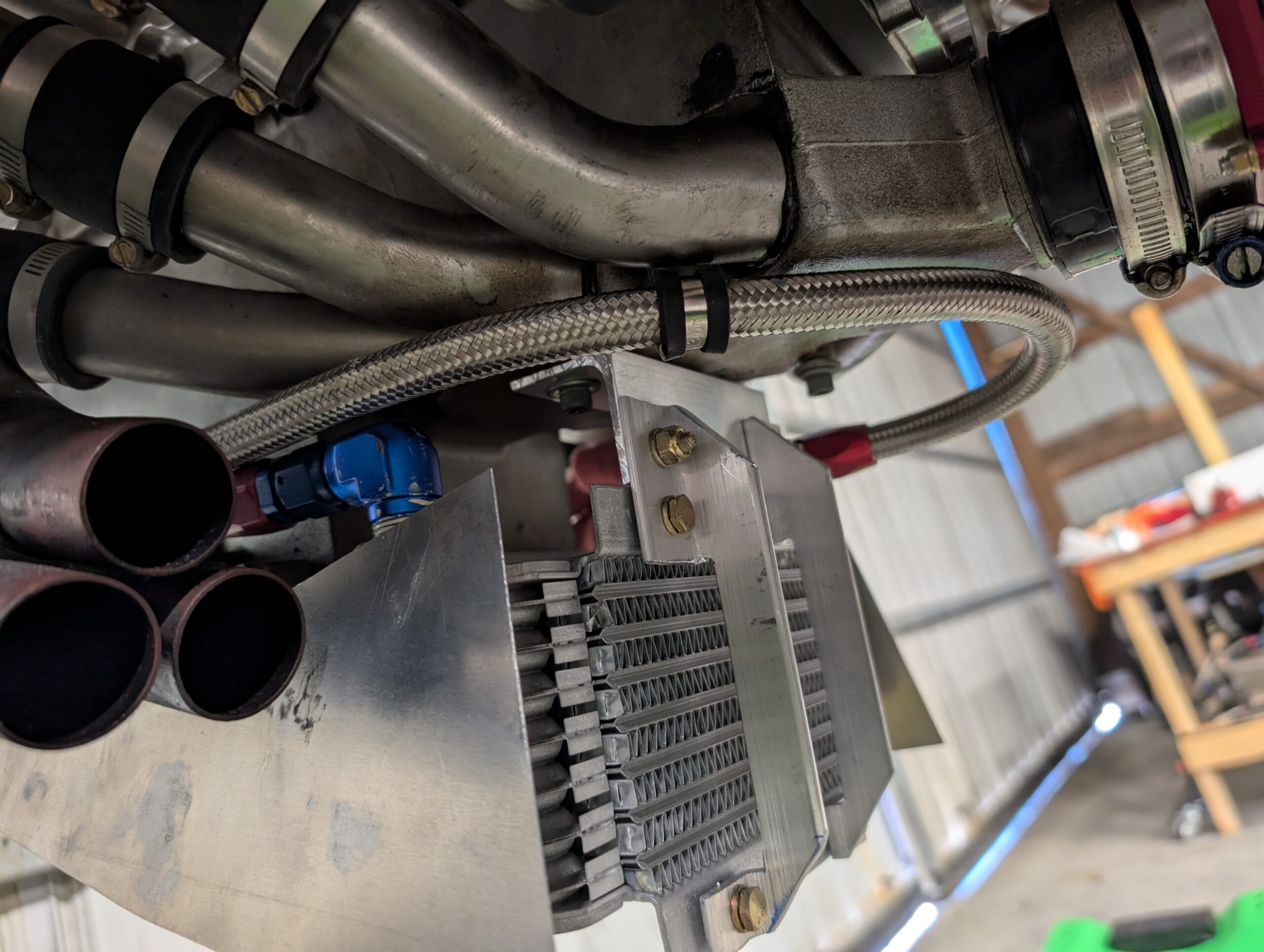

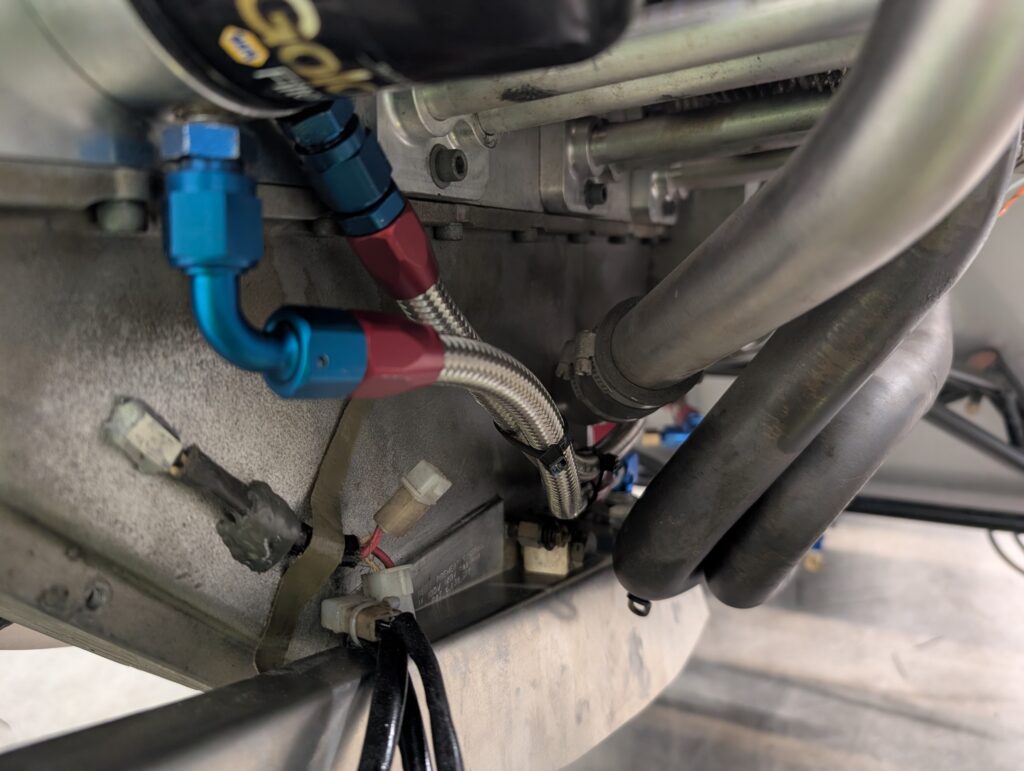

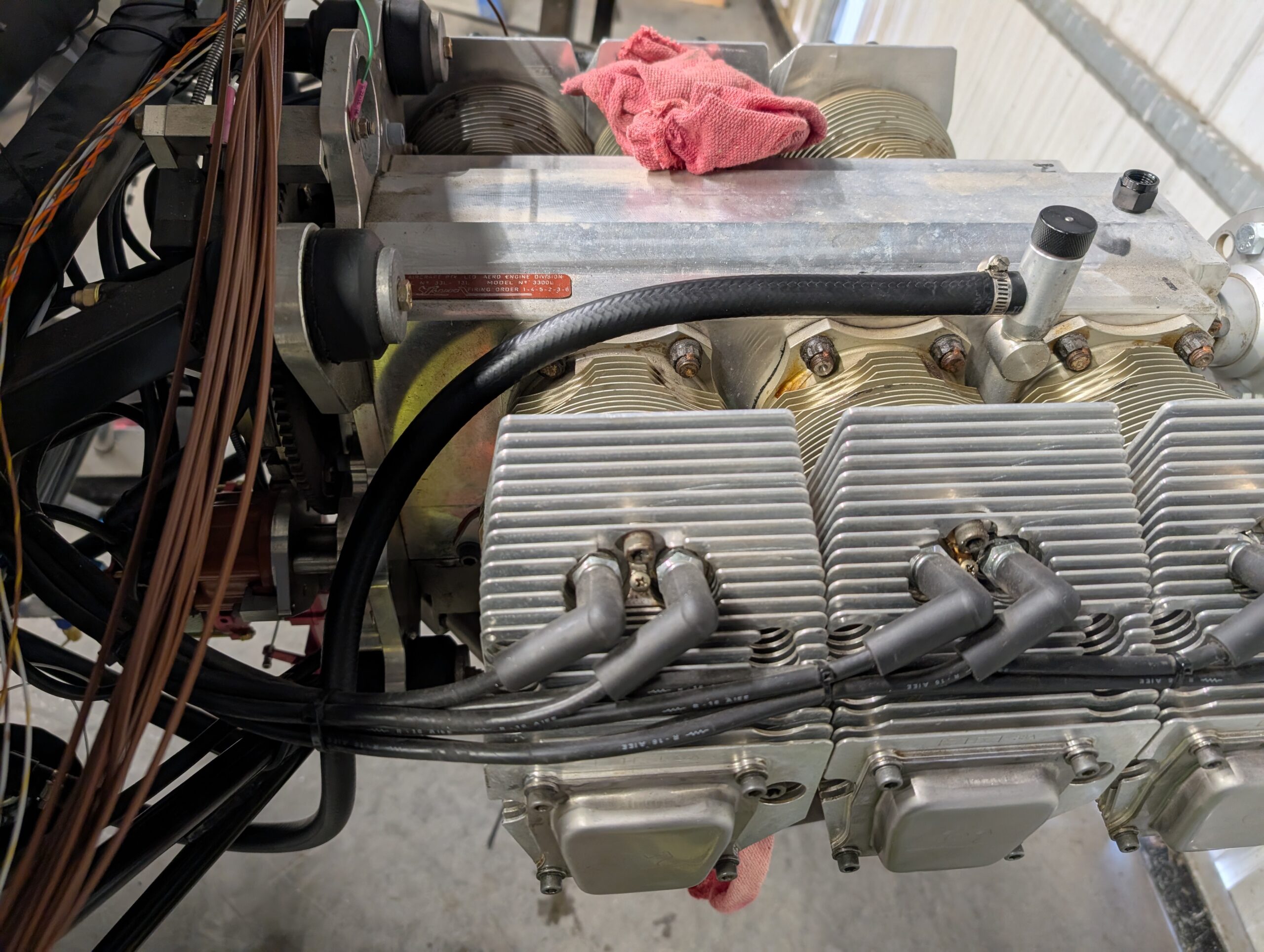

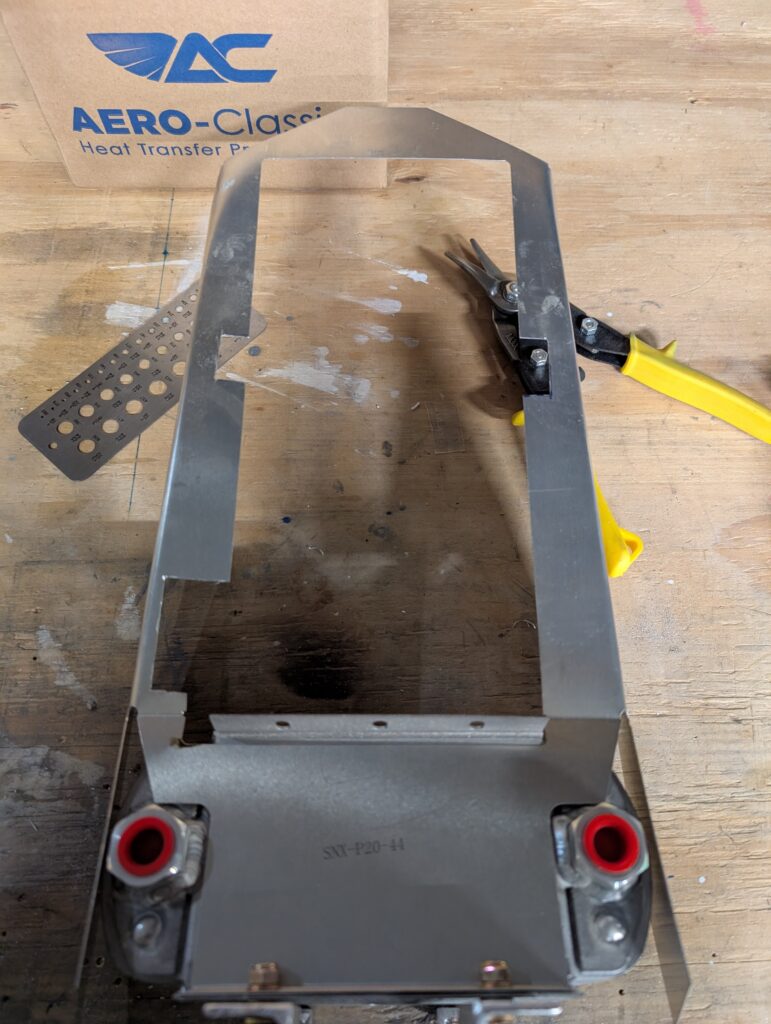

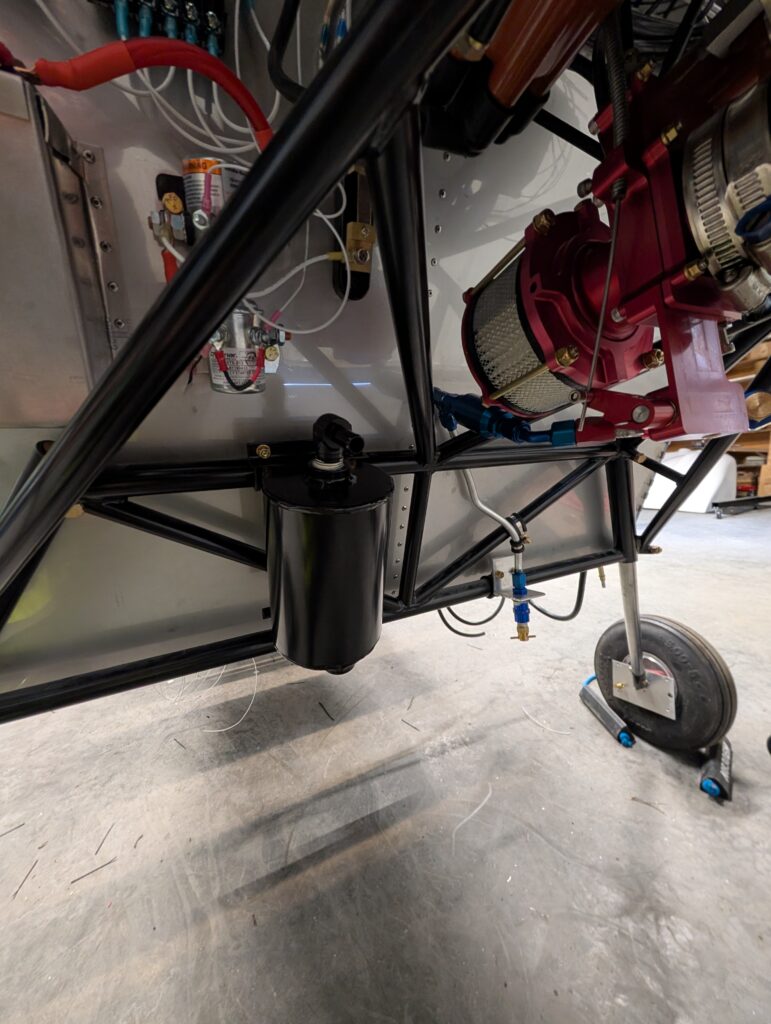

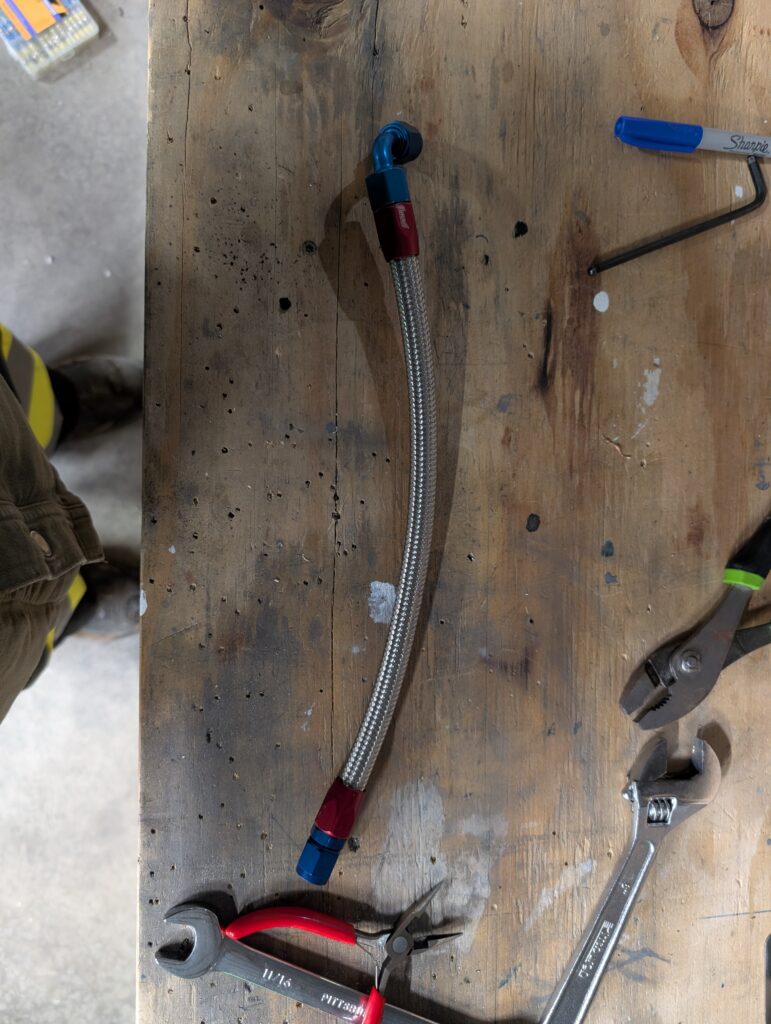

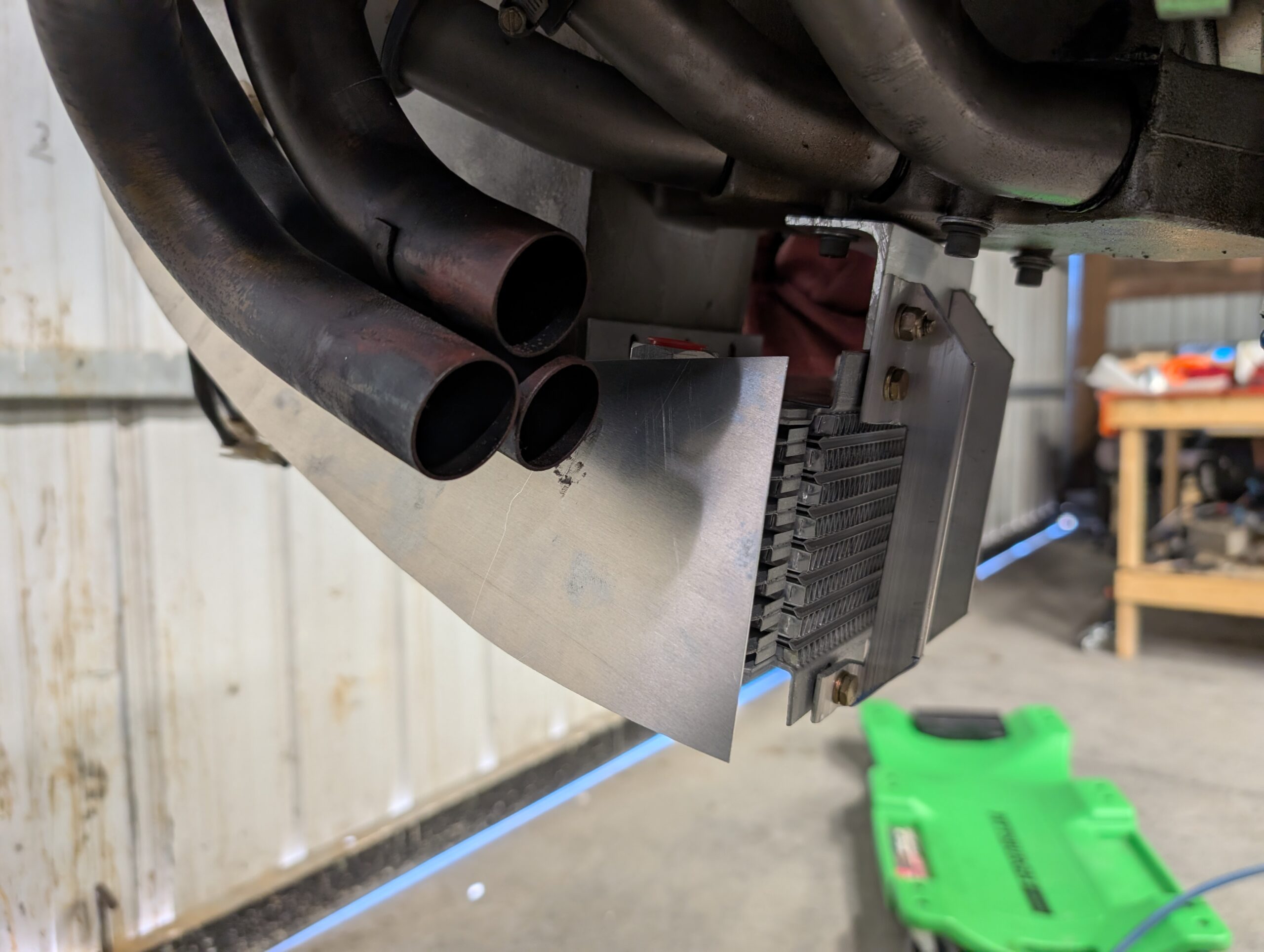

Mounted oil cooler bracket onto bottom side of intake and secured bolts with Loctite 242. Temporarily mounted oil cooler to engine then marked areas of baffling to remove for block heater and oil drain. Installed AN fittings into top of oil cooler. Made oil cooler hoses and routed them from oil filter housing to oil cooler. Secured long hose with Adel clamp. Mounted oil separator on bottom right section of engine mount with Adel clamps. Installed plug on bottom of separator and AN elbow on top with stainless steel ball for aerobatics. Ran 1/2″ ID rubber hose from dipstick to oil separator and secured to engine mount with Adel clamps.
Hours Worked: 4.70
