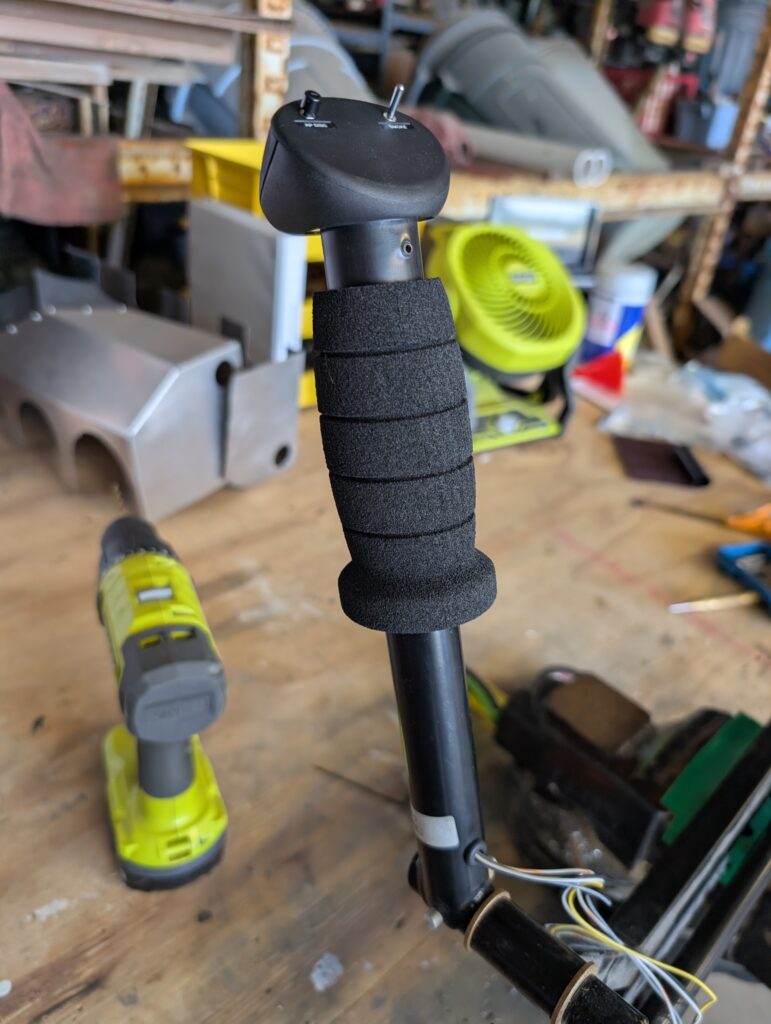

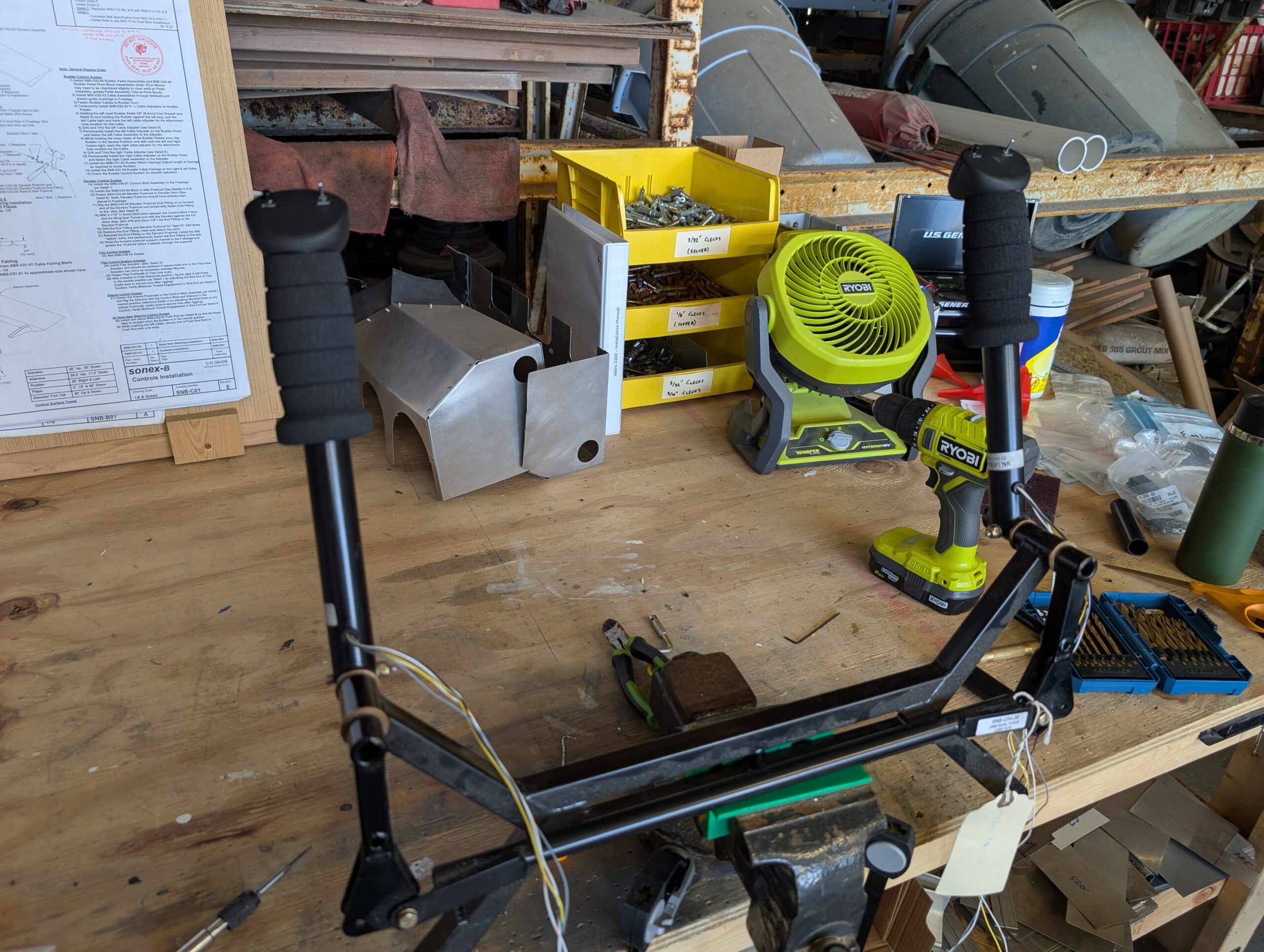

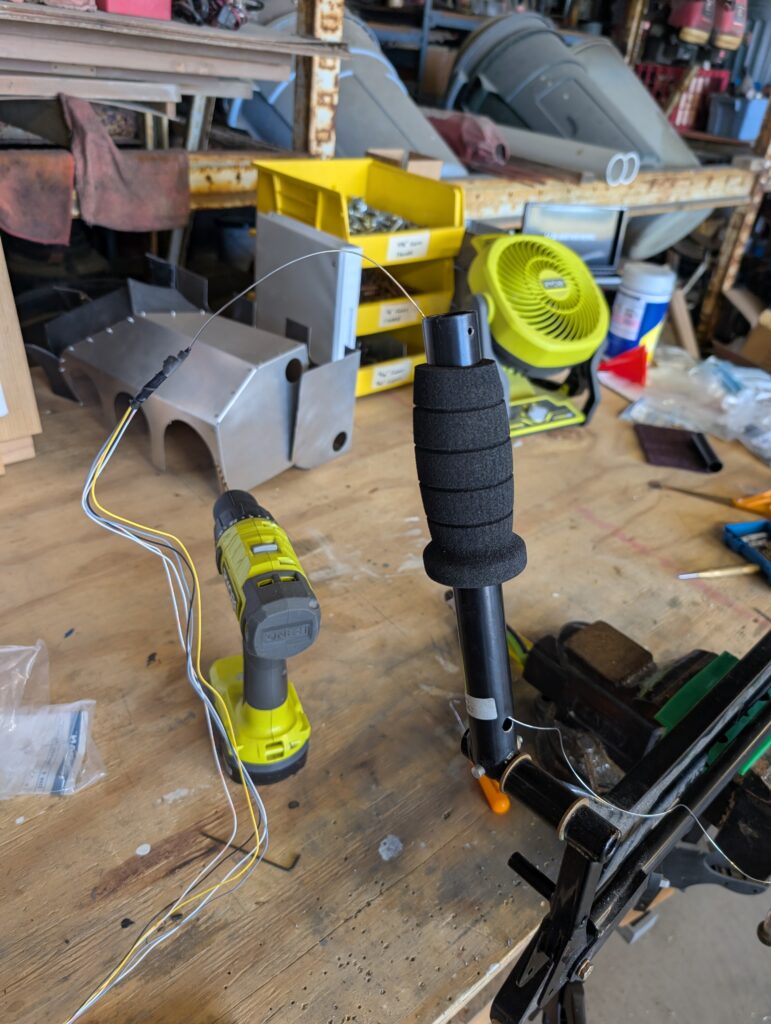

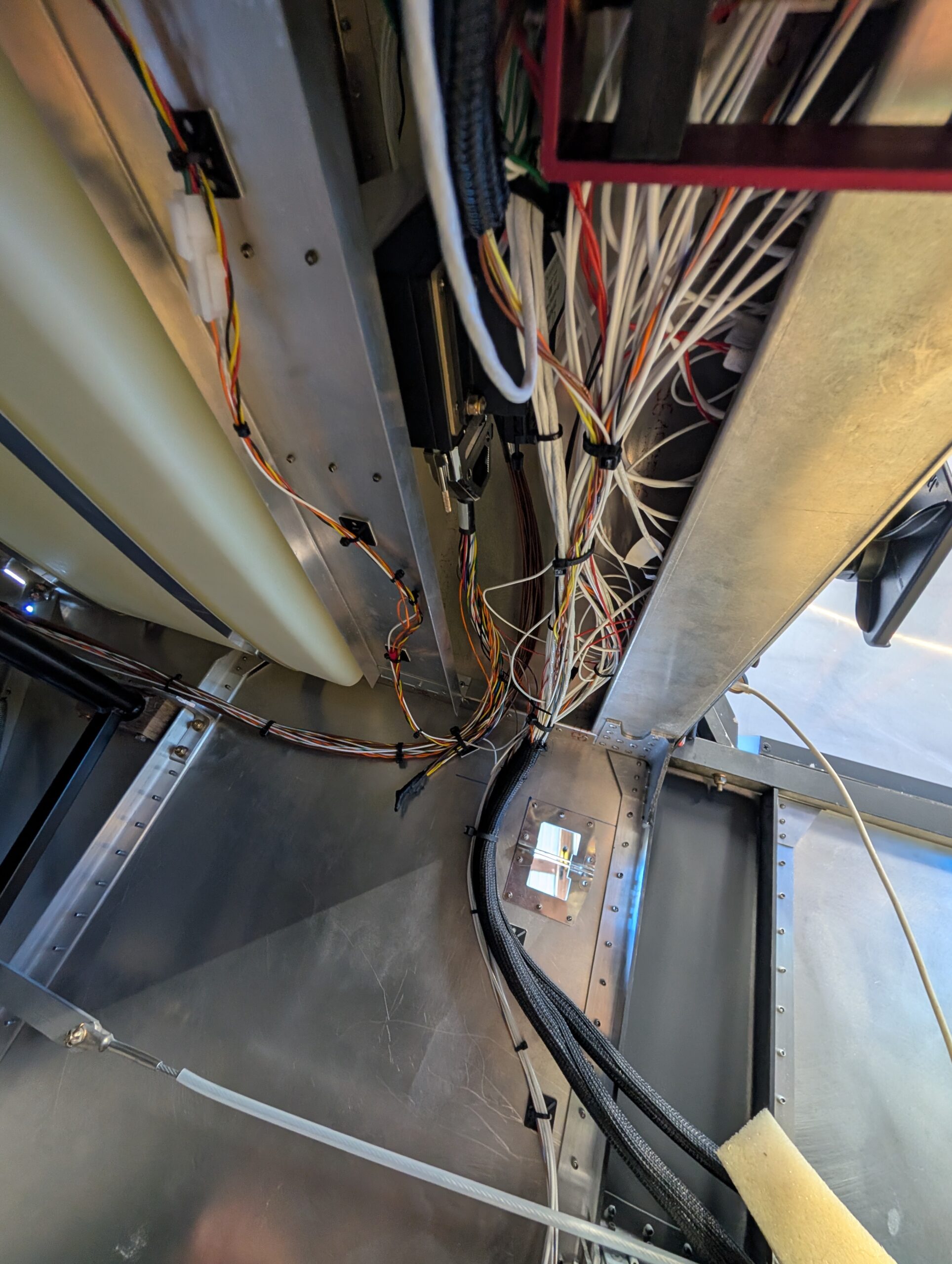

Finished securing wiring behind instrument panel and underneath sub-panel shelf. Drilled wire hole in bottom of both control sticks for stick grip wiring. Aligned stick grips and drilled pilot hole in grip and control stick. Updrilled holes and tapped stick for 8-32 set screw. Installed stick grip foam onto each control stick and fished wires through bottom opening with safety wire. Installed grommet into wire holes and secured stick grip onto control stick with set screw. Routed wires on top of control horn frame and secured with adhesive pads and zip ties. Terminated wires into Molex connector.
Hours Worked: 2.94
