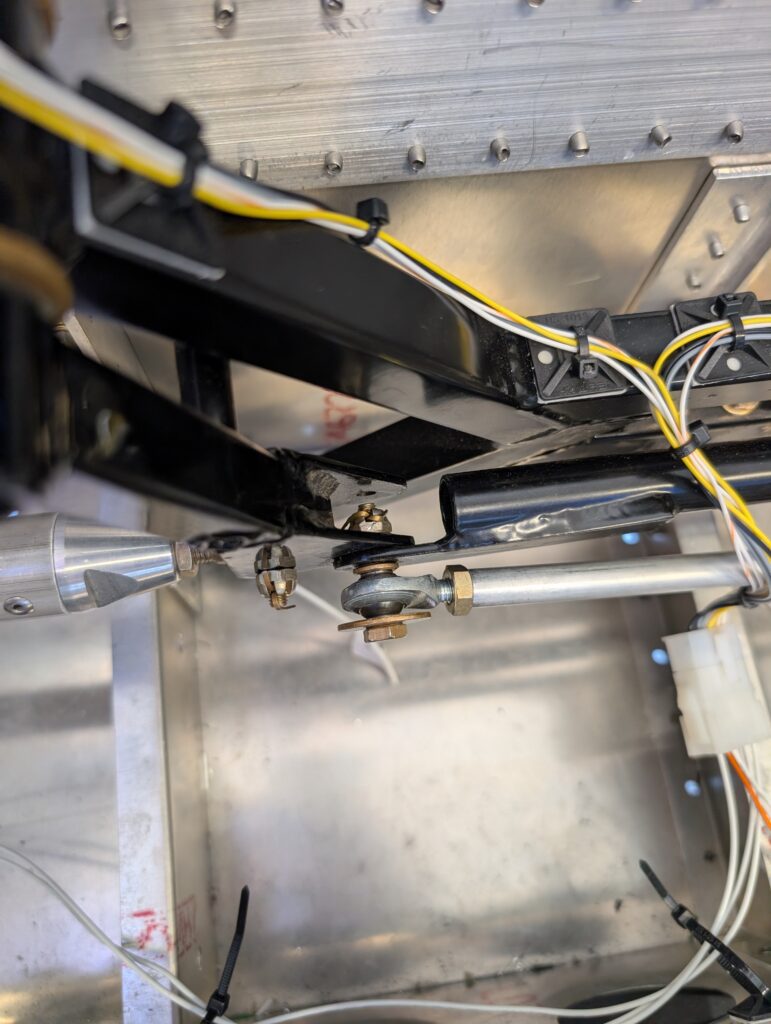

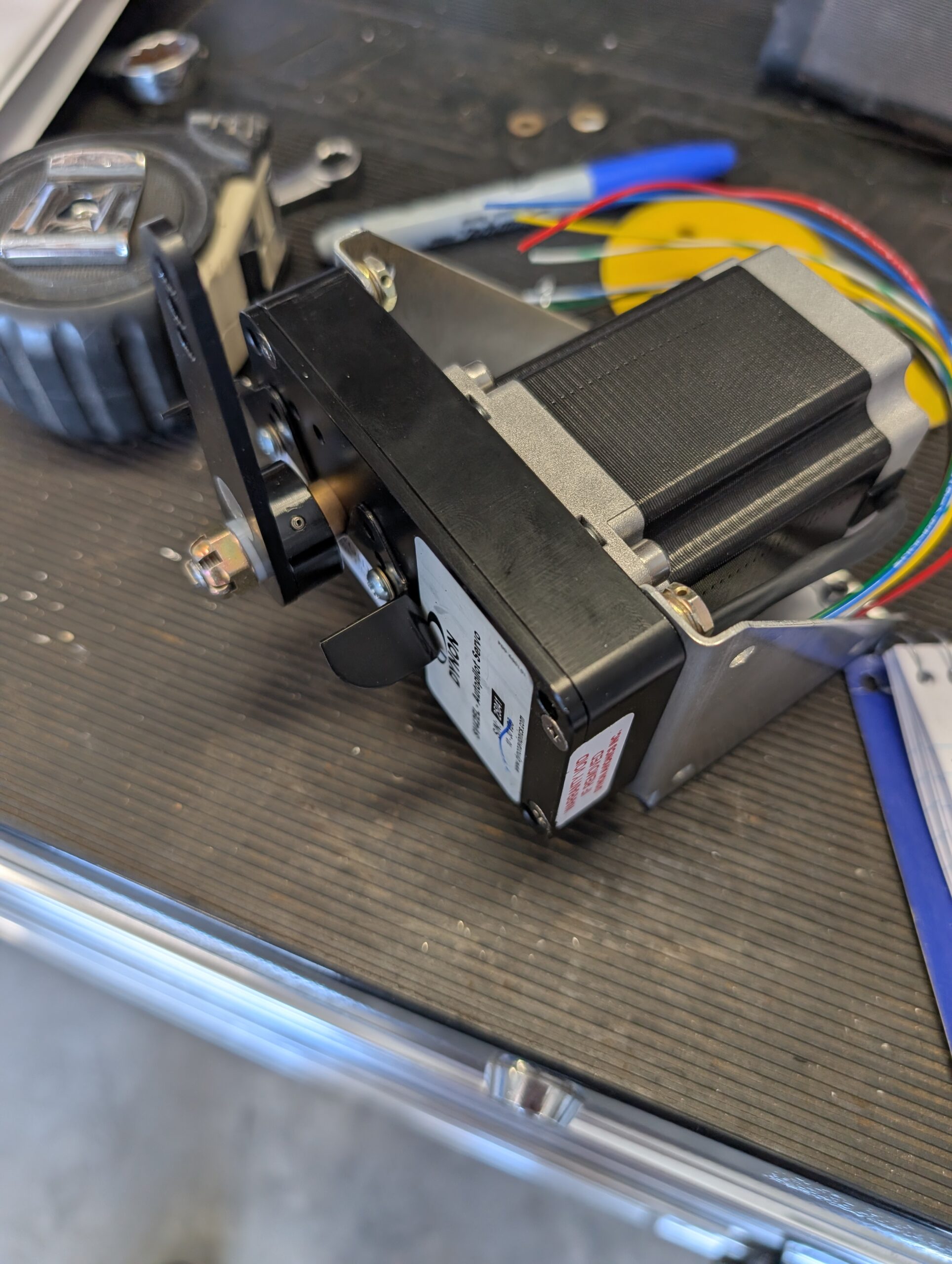

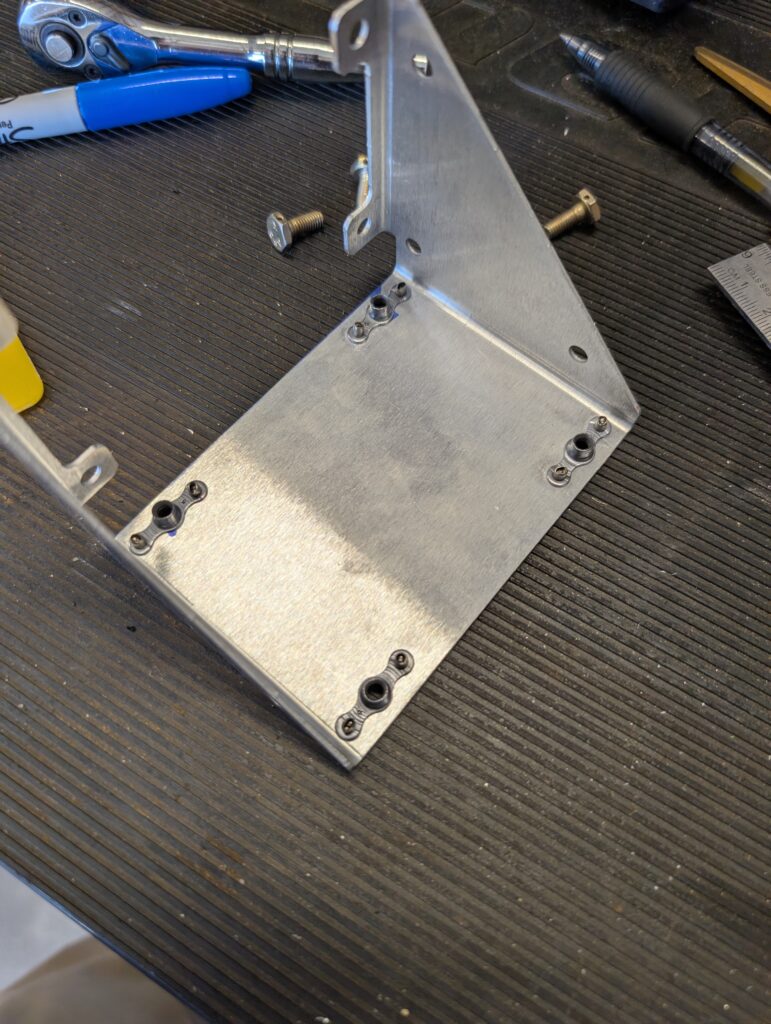

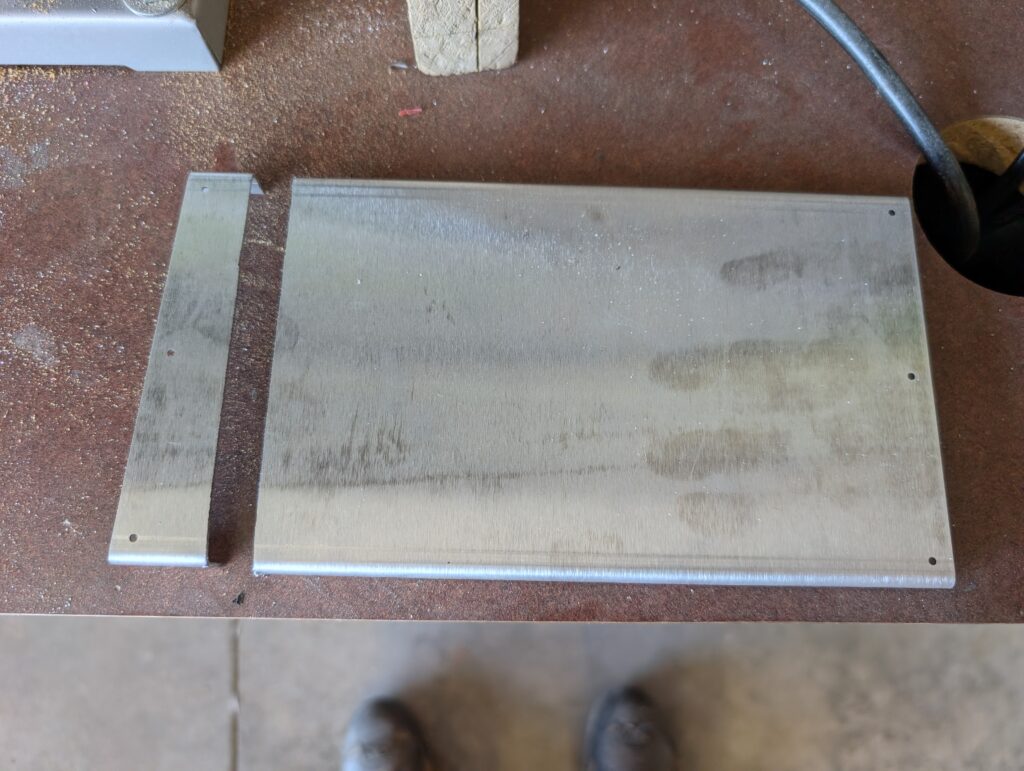

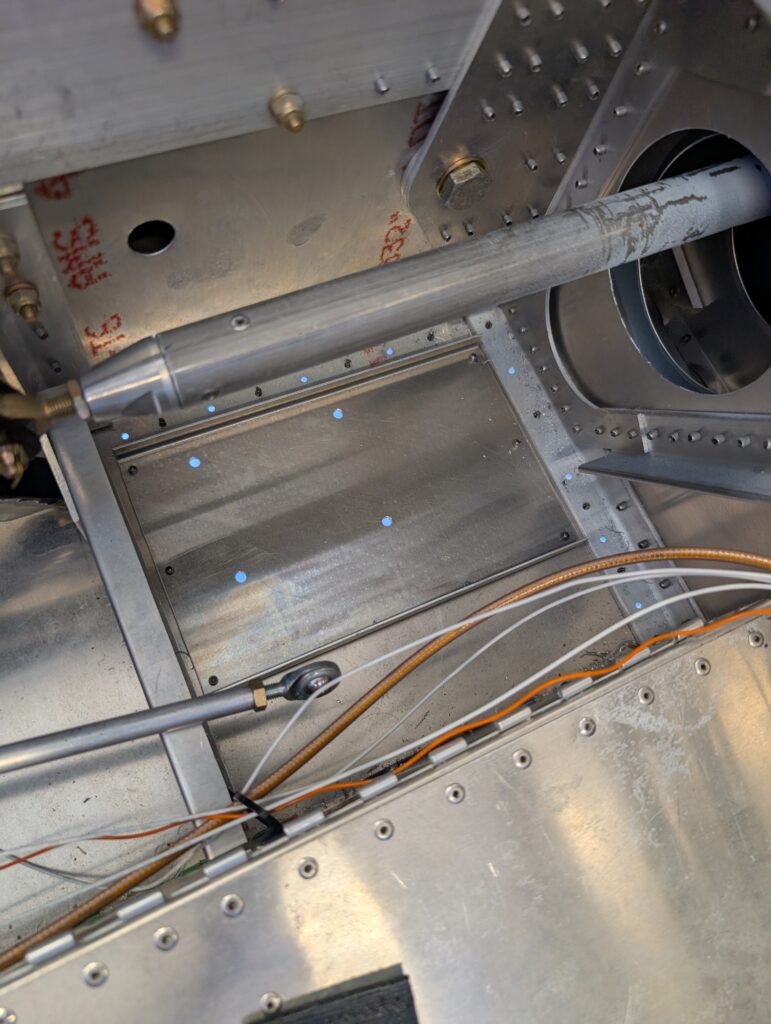

Attached roll servo pushrod to LH control stick frame per Dynon instruction sheet. Trialed rough location for roll servo under RH side of forward seat pan and verified clearance and freedom of movement. Transferred mounting hole location to fuselage floor and updrilled holes for mounting bolts. Trimmed provided stiffener angle and riveted stiffener to fuselage floor. Installed nutplates onto servo bracket the test fit bracket onto floor. Removed bracket to mount servo and install servo arm limiter bracket.
Hours Worked: 1.83
