SV-NET-6CC
Transponder/ADS-B Harness Wiring
Removed RH side panel cover and finished wiring all circuit breakers and power feeds. Installed power outlet on RH side of panel. Left feed wires for autopilot and aux power panel for now. Installed pre-fabricated transponder and ADS-B harnesses and routed them on RH side of fuselage. Removed flip flop and squat switch wires from…

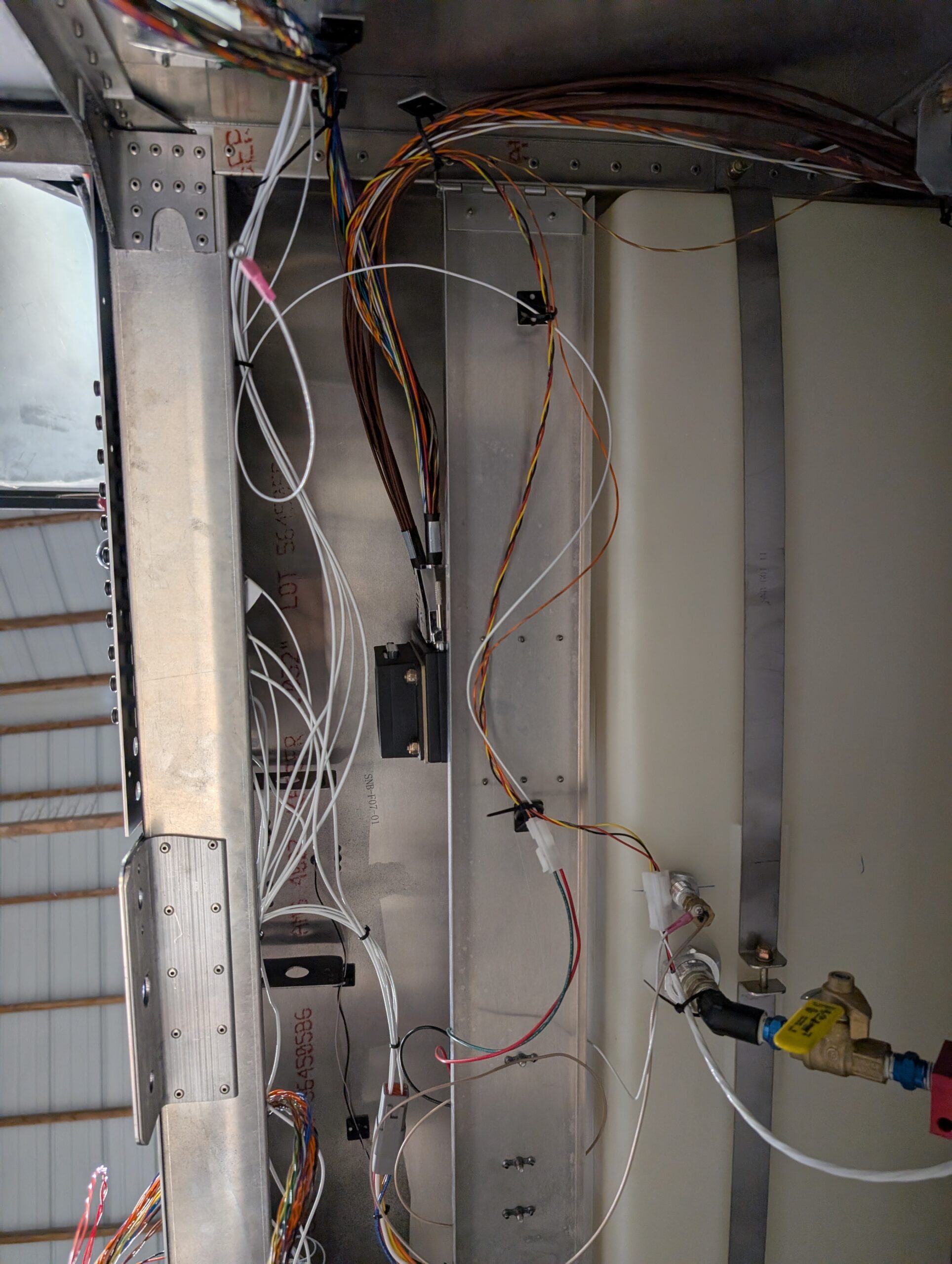

Fuel System Electronics Wiring
Installed molex connectors on fuel probe and fuel flow transducer and connected components to EMS harness and SkyView circuit breaker. Attached voltmeter input of EMS box to main bus bar. Ran firewall forward wires of EMS harness through gromet to engine compartment. Installed main display harness and hooked up power and ground connections. Connected SV-EMS-220…
