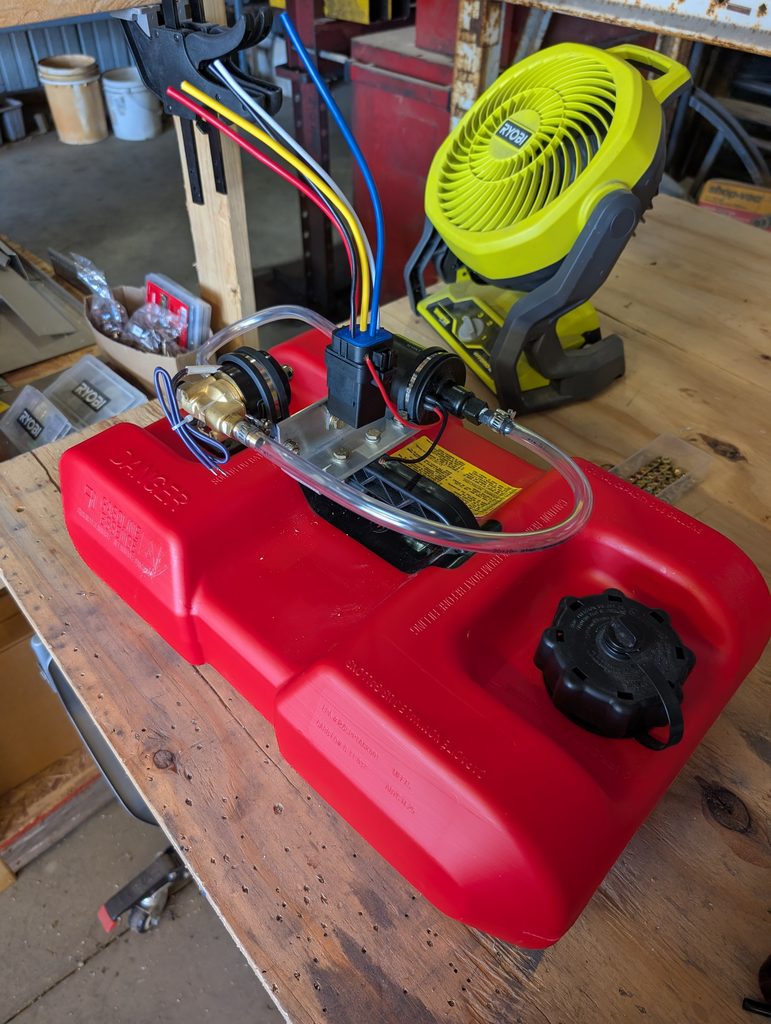

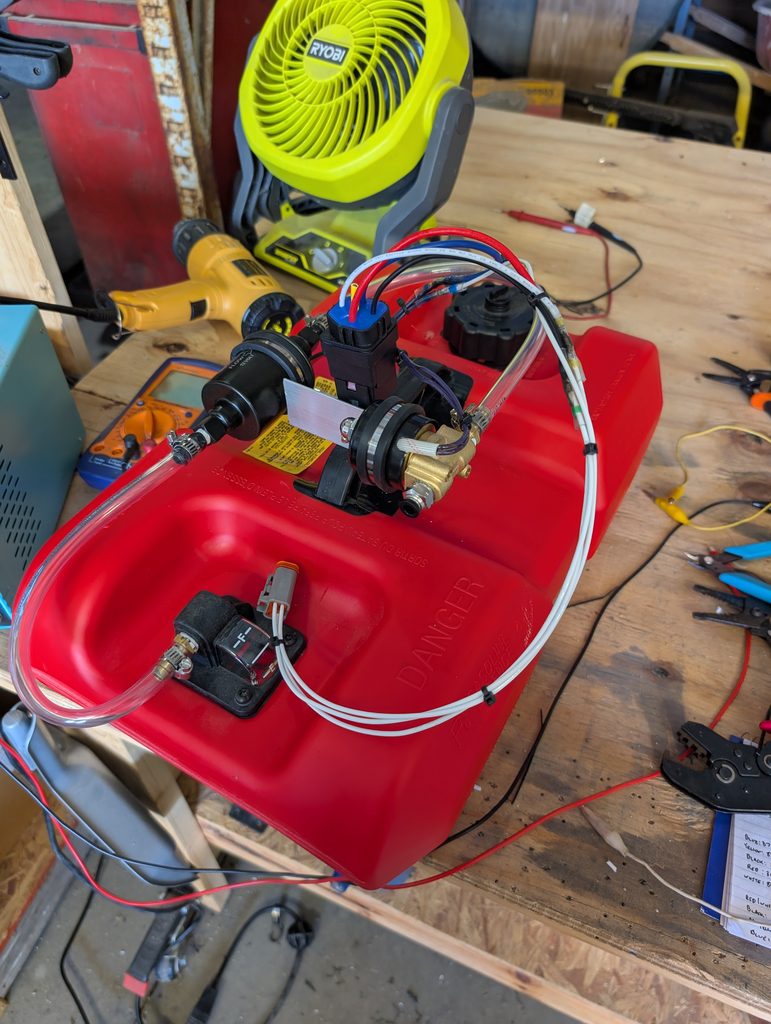

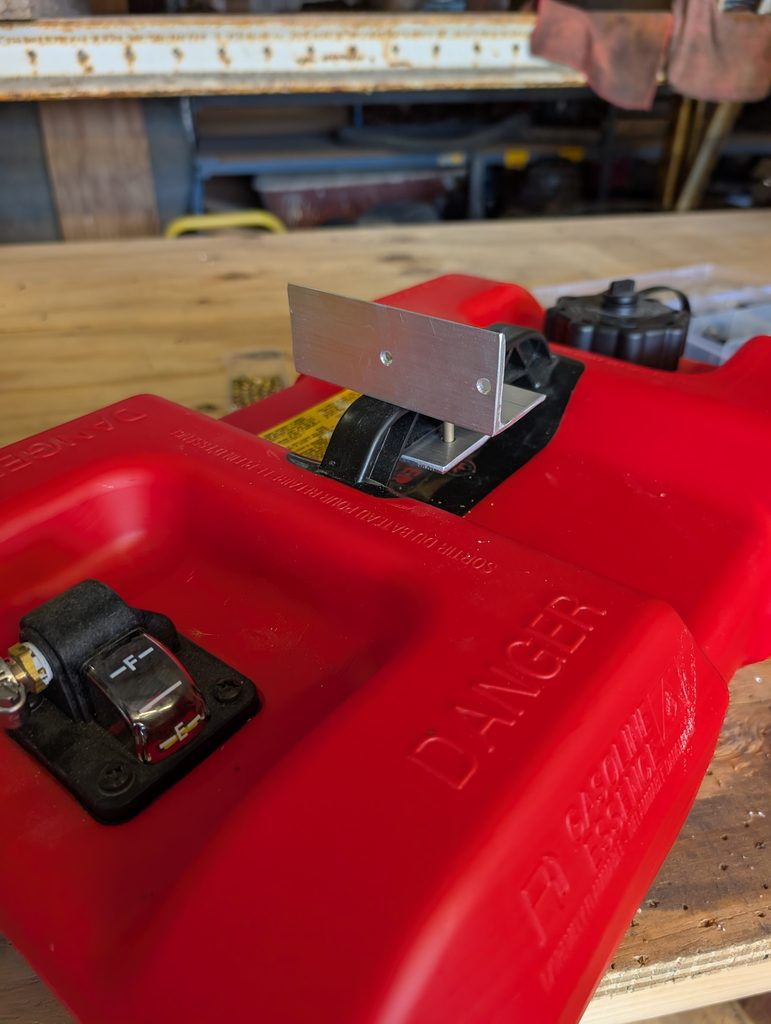

Began plumbing the smoke fluid tank by creating a component mount out of scrap aluminum angle and bolting it to the smoke tank handle that way no tank penetrations needed to be made. Mounted the fluid pump, solenoid valve, and relay on the mount with Adel clamps. Attached fluid lines from tank to pump and pump to solenoid valve. Tested out the ground trigger wiring system with the relay on the bench. Connected wires together using solder sleeves then added DT connector at the end of the harness that will plug into the accessory plug located on top of the rear spar carry through. Placed the smoke tank in the baggage compartment and ops checked smoke switches on control sticks; ops check good. Smoke system now complete!
Hours Worked: 2.19
